Hi,
I found that the manual from the main site is
outdated.
Yeah, still couldn't find some time to update the wiki.
If I understood it correct, I have to setup calypso
bts
as bts of type nanoBTS, correct?
Why do you think so? No, CalypsoBTS has nothing related
toip.access nanoBTS. From the other side, we don't have
a dedicated type for OsmoBTS, so you can use 'sysmoBTS'.
I can sync with commercial cell, I can run OsmoBSC
and
OsmoBTS but I still cannot find my network from my personal
phone in searching mode.
Please watch a great Sylvain's talk, where he explained
almost everything you need to know:
"Further hacks on the Calypso platform"
https://media.ccc.de/v/29c3-5226-en-further_hacks_calypso_h264
In short: BTS should transmit a continuous beacon on C0 to be
detected. Normal MS can't do that. CalypsoBTS was hacked to
perform the following timeslot layout: Tt_R_ttt, where
'T' means TX on Downlink, 'R' means RX on Uplink, and 't' means
channel filling - dummy bursts. Phone cannot RX and TX at the
same time, so one phone serves only one TS. With two phones
you have the following layout: TT_RRttt, so you have two
timeslots served.
This is why you will have some detection troubles even with
working BSS setup :/
In logs of osmo-bts I can see:
<0000> rsl.c:246 Tx RSL RF RESource INDication
<000b> trx_if.c:397 transceiver (phy0.0) rejected TRX command with
response: 'RSP SETTSC -1'
<0000> rsl.c:2353 (bts=0,trx=0,ts=0,ss=0) Rx RSL BCCH_INFO
Just delete the 'settsc' line from your config, because CalypsoBTS
transceiver only supports 'setbsic'.
Have a fun!
With best regards,
Vadim Yanitskiy.
9 May
9 May
8:20 p.m.
New subject: CalypsoBTS and modern OsmoBSC
Hi Vadim!
Thank you for the comments. I will check your advices. Actually I already
watched everything on youtube and other resources☺ But it needs more time
to perceive all the info correctly...
9 Май 2017 г. 20:44 пользователь "Vadim Yanitskiy" <axilirator(a)gmail.com>
написал:
Hi,
I found that the manual from the main site is
outdated.
Yeah, still couldn't find some time to update the wiki.
If I understood it correct, I have to setup
calypso bts
as bts of type nanoBTS, correct?
Why do you think so? No, CalypsoBTS has nothing related
toip.access nanoBTS. From the other side, we don't have
a dedicated type for OsmoBTS, so you can use 'sysmoBTS'.
I can sync with commercial cell, I can run
OsmoBSC and
OsmoBTS but I still cannot find my network from my personal
phone in searching mode.
Please watch a great Sylvain's talk, where he explained
almost everything you need to know:
"Further hacks on the Calypso platform"
https://media.ccc.de/v/29c3-5226-en-further_hacks_calypso_h264
In short: BTS should transmit a continuous beacon on C0 to be
detected. Normal MS can't do that. CalypsoBTS was hacked to
perform the following timeslot layout: Tt_R_ttt, where
'T' means TX on Downlink, 'R' means RX on Uplink, and 't' means
channel filling - dummy bursts. Phone cannot RX and TX at the
same time, so one phone serves only one TS. With two phones
you have the following layout: TT_RRttt, so you have two
timeslots served.
This is why you will have some detection troubles even with
working BSS setup :/
In logs of osmo-bts I can see:
<0000> rsl.c:246 Tx RSL RF RESource INDication
<000b> trx_if.c:397 transceiver (phy0.0) rejected TRX command with
response: 'RSP SETTSC -1'
<0000> rsl.c:2353 (bts=0,trx=0,ts=0,ss=0) Rx RSL BCCH_INFO
Just delete the 'settsc' line from your config, because CalypsoBTS
transceiver only supports 'setbsic'.
Have a fun!
With best regards,
Vadim Yanitskiy.
10 May
10 May
7:51 a.m.
New subject: CalypsoBTS and modern OsmoBSC
Hello again,
I set up bts like sysmobts but it seems there are some other issues.
If I understood it correct I must specify phys_channel_confif for all TS of
the BTS.
Otherwise OsmoBTS cannot get settings from OsmoBSC. What config should I
set for TS2-TS7?
And will "slotmask 1 1 0 0 0 0 0 0" affect somehow the OsmoBTS behaviour?
Now I can find my networks (sometimes :) but when my phone found it OsmoBTS
crashes with the following message...:
<0006> scheduler.c:1506 Set a5/0 uplink for SACCH/4(0) on trx=0 ts=0
<0006> scheduler.c:1506 Set a5/0 downlink for SDCCH/4(0) on trx=0 ts=0
<0006> scheduler.c:1506 Set a5/0 downlink for SACCH/4(0) on trx=0 ts=0
<0000> rsl.c:558 (bts=0,trx=0,ts=0,ss=0) Tx CHAN ACT ACK
<000b> trx_if.c:397 transceiver (phy0.0) rejected TRX command with
response: 'RSP NOHANDOVER -1'
<0001> bts.c:208 Shutting down BTS 0, Reason TRX-CTRL-MSG: CRITICAL
<0006> scheduler.c:240 Exit scheduler for trx=0
<0006> scheduler.c:216 Init scheduler for trx=0
2017-05-09 23:20 GMT+03:00 Anton Gorbachev <antgorka(a)gmail.com>om>:
Hi Vadim!
Thank you for the comments. I will check your advices. Actually I already
watched everything on youtube and other resources☺ But it needs more time
to perceive all the info correctly...
9 Май 2017 г. 20:44 пользователь "Vadim Yanitskiy"
<axilirator(a)gmail.com>
написал:
Hi,
I found that the manual from the main site is
outdated.
Yeah, still couldn't find some time to update the wiki.
If I understood it correct, I have to setup
calypso bts
as bts of type nanoBTS, correct?
Why do you think so? No, CalypsoBTS has nothing related
toip.access nanoBTS. From the other side, we don't have
a dedicated type for OsmoBTS, so you can use 'sysmoBTS'.
I can sync with commercial cell, I can run
OsmoBSC and
OsmoBTS but I still cannot find my network from my personal
phone in searching mode.
Please watch a great Sylvain's talk, where he explained
almost everything you need to know:
"Further hacks on the Calypso platform"
https://media.ccc.de/v/29c3-5226-en-further_hacks_calypso_h264
In short: BTS should transmit a continuous beacon on C0 to be
detected. Normal MS can't do that. CalypsoBTS was hacked to
perform the following timeslot layout: Tt_R_ttt, where
'T' means TX on Downlink, 'R' means RX on Uplink, and 't' means
channel filling - dummy bursts. Phone cannot RX and TX at the
same time, so one phone serves only one TS. With two phones
you have the following layout: TT_RRttt, so you have two
timeslots served.
This is why you will have some detection troubles even with
working BSS setup :/
In logs of osmo-bts I can see:
<0000> rsl.c:246 Tx RSL RF RESource INDication
<000b> trx_if.c:397 transceiver (phy0.0) rejected TRX command with
response: 'RSP SETTSC -1'
<0000> rsl.c:2353 (bts=0,trx=0,ts=0,ss=0) Rx RSL BCCH_INFO
Just delete the 'settsc' line from your config, because CalypsoBTS
transceiver only supports 'setbsic'.
Have a fun!
With best regards,
Vadim Yanitskiy.
12:48 p.m.
New subject: CalypsoBTS and modern OsmoBSC
OK,
I reassembled all the files with "old" toolchain and now I can see network
but when I try to do a location update or add subscriver manually I get
Segmentation fault (core dumped)
In syslog:
May 10 15:08:33 osmobox kernel: [ 740.703083] osmo-nitb[2517]: segfault at
6e656d70 ip b778b589 sp bf84ba40 error 4 in libdbdsqlite3.so[b7788000+8000]
It seems there is some issue with HLR's sqlite.
Did you meet such error before?
I found also this thread
http://lists.osmocom.org/pipermail/openbsc/2015-October/000578.html
Should I use x64 bit architexture to solve it? Do you have working setup of
calypsoBTS? What OS do you use for that?
Kind regards.
2017-05-10 10:51 GMT+03:00 Anton Gorbachev <antgorka(a)gmail.com>om>:
Hello again,
I set up bts like sysmobts but it seems there are some other issues.
If I understood it correct I must specify phys_channel_confif for all TS
of the BTS.
Otherwise OsmoBTS cannot get settings from OsmoBSC. What config should I
set for TS2-TS7?
And will "slotmask 1 1 0 0 0 0 0 0" affect somehow the OsmoBTS behaviour?
Now I can find my networks (sometimes :) but when my phone found it
OsmoBTS crashes with the following message...:
<0006> scheduler.c:1506 Set a5/0 uplink for SACCH/4(0) on trx=0 ts=0
<0006> scheduler.c:1506 Set a5/0 downlink for SDCCH/4(0) on trx=0 ts=0
<0006> scheduler.c:1506 Set a5/0 downlink for SACCH/4(0) on trx=0 ts=0
<0000> rsl.c:558 (bts=0,trx=0,ts=0,ss=0) Tx CHAN ACT ACK
<000b> trx_if.c:397 transceiver (phy0.0) rejected TRX command with
response: 'RSP NOHANDOVER -1'
<0001> bts.c:208 Shutting down BTS 0, Reason TRX-CTRL-MSG: CRITICAL
<0006> scheduler.c:240 Exit scheduler for trx=0
<0006> scheduler.c:216 Init scheduler for trx=0
2017-05-09 23:20 GMT+03:00 Anton Gorbachev <antgorka(a)gmail.com>om>:
Hi Vadim!
Thank you for the comments. I will check your advices. Actually I already
watched everything on youtube and other resources☺ But it needs more time
to perceive all the info correctly...
9 Май 2017 г. 20:44 пользователь "Vadim Yanitskiy"
<axilirator(a)gmail.com>
написал:
Hi,
I found that the manual from the main site is
outdated.
Yeah, still couldn't find some time to update the wiki.
If I understood it correct, I have to setup
calypso bts
as bts of type nanoBTS, correct?
Why do you think so? No, CalypsoBTS has nothing related
toip.access nanoBTS. From the other side, we don't have
a dedicated type for OsmoBTS, so you can use 'sysmoBTS'.
I can sync with commercial cell, I can run
OsmoBSC and
OsmoBTS but I still cannot find my network from my personal
phone in searching mode.
Please watch a great Sylvain's talk, where he explained
almost everything you need to know:
"Further hacks on the Calypso platform"
https://media.ccc.de/v/29c3-5226-en-further_hacks_calypso_h264
In short: BTS should transmit a continuous beacon on C0 to be
detected. Normal MS can't do that. CalypsoBTS was hacked to
perform the following timeslot layout: Tt_R_ttt, where
'T' means TX on Downlink, 'R' means RX on Uplink, and 't' means
channel filling - dummy bursts. Phone cannot RX and TX at the
same time, so one phone serves only one TS. With two phones
you have the following layout: TT_RRttt, so you have two
timeslots served.
This is why you will have some detection troubles even with
working BSS setup :/
In logs of osmo-bts I can see:
<0000> rsl.c:246 Tx RSL RF RESource INDication
<000b> trx_if.c:397 transceiver (phy0.0) rejected TRX command with
response: 'RSP SETTSC -1'
<0000> rsl.c:2353 (bts=0,trx=0,ts=0,ss=0) Rx RSL BCCH_INFO
Just delete the 'settsc' line from your config, because CalypsoBTS
transceiver only supports 'setbsic'.
Have a fun!
With best regards,
Vadim Yanitskiy.
11 May
11 May
10:43 a.m.
New subject: CalypsoBTS and modern OsmoBSC
OK,
I tried Ubuntu 14.04 amd64 and Segmantation error disappeared. I can
connect to my network, register subscribers, perform USSD but now I cannot
receive SMS.

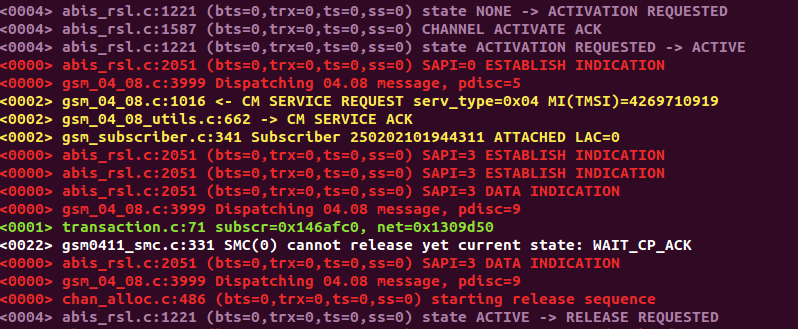

In NITB logs I can see an error. <0022> gsm0411_smc.c:331 SMC(0) cannot
release yet current state: WAIT_CP_ACK
Don't you know what can it mean?
More details:
<0002> gsm_04_08.c:1016 <- CM SERVICE REQUEST serv_type=0x04
MI(TMSI)=3404602319
<0002> gsm_04_08_utils.c:662 -> CM SERVICE ACK
<0002> gsm_subscriber.c:341 Subscriber 250996689298609 ATTACHED LAC=0
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=3 ESTABLISH INDICATION
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=3 ESTABLISH INDICATION
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=3 DATA INDICATION
<0000> gsm_04_08.c:3999 Dispatching 04.08 message, pdisc=9
<0001> transaction.c:71 subscr=0x26a3110, net=0x255cd50
<0022> gsm0411_smc.c:331 SMC(0) cannot release yet current state:
WAIT_CP_ACK
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=3 DATA INDICATION
<0000> gsm_04_08.c:3999 Dispatching 04.08 message, pdisc=9
<0000> chan_alloc.c:486 (bts=0,trx=0,ts=1,ss=0) starting release sequence
<0004> abis_rsl.c:1221 (bts=0,trx=0,ts=1,ss=0) state ACTIVE -> RELEASE
REQUESTED
<0000> abis_rsl.c:1191 (bts=0,trx=0,ts=1,ss=0) RSL RLL RELEASE REQ
(link_id=0x43, reason=1)
<0003> gsm_04_08_utils.c:251 Sending Channel Release: Chan: Number: 0 Type:
3
<0004> abis_rsl.c:767 (bts=0,trx=0,ts=1,ss=0) DEACTivate SACCH CMD
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=3 RELEASE CONFIRMATION
<0004> abis_rsl.c:2022 (bts=0,trx=0,ts=1,ss=0) waiting for SAPI=0 to be
released.
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=0 RELEASE INDICATION
<0004> abis_rsl.c:1715 (bts=0,trx=0,ts=1,ss=0) T3111 expired: releasing RF
Channel
<0004> abis_rsl.c:859 (bts=0,trx=0,ts=1,ss=0) RF Channel Release
<0004> abis_rsl.c:929 (bts=0,trx=0,ts=1,ss=0) RF CHANNEL RELEASE ACK
<0004> abis_rsl.c:1221 (bts=0,trx=0,ts=1,ss=0) state RELEASE REQUESTED ->
NONE
2017-05-10 15:48 GMT+03:00 Anton Gorbachev <antgorka(a)gmail.com>om>:
OK,
I reassembled all the files with "old" toolchain and now I can see network
but when I try to do a location update or add subscriver manually I get
Segmentation fault (core dumped)
In syslog:
May 10 15:08:33 osmobox kernel: [ 740.703083] osmo-nitb[2517]: segfault
at 6e656d70 ip b778b589 sp bf84ba40 error 4 in libdbdsqlite3.so[b7788000+
8000]
It seems there is some issue with HLR's sqlite.
Did you meet such error before?
I found also this thread
http://lists.osmocom.org/pipermail/openbsc/2015-October/000578.html
Should I use x64 bit architexture to solve it? Do you have working setup
of calypsoBTS? What OS do you use for that?
Kind regards.
2017-05-10 10:51 GMT+03:00 Anton Gorbachev <antgorka(a)gmail.com>om>:
Hello again,
I set up bts like sysmobts but it seems there are some other issues.
If I understood it correct I must specify phys_channel_confif for all TS
of the BTS.
Otherwise OsmoBTS cannot get settings from OsmoBSC. What config should I
set for TS2-TS7?
And will "slotmask 1 1 0 0 0 0 0 0" affect somehow the OsmoBTS behaviour?
Now I can find my networks (sometimes :) but when my phone found it
OsmoBTS crashes with the following message...:
<0006> scheduler.c:1506 Set a5/0 uplink for SACCH/4(0) on trx=0 ts=0
<0006> scheduler.c:1506 Set a5/0 downlink for SDCCH/4(0) on trx=0 ts=0
<0006> scheduler.c:1506 Set a5/0 downlink for SACCH/4(0) on trx=0 ts=0
<0000> rsl.c:558 (bts=0,trx=0,ts=0,ss=0) Tx CHAN ACT ACK
<000b> trx_if.c:397 transceiver (phy0.0) rejected TRX command with
response: 'RSP NOHANDOVER -1'
<0001> bts.c:208 Shutting down BTS 0, Reason TRX-CTRL-MSG: CRITICAL
<0006> scheduler.c:240 Exit scheduler for trx=0
<0006> scheduler.c:216 Init scheduler for trx=0
2017-05-09 23:20 GMT+03:00 Anton Gorbachev <antgorka(a)gmail.com>om>:
Hi Vadim!
Thank you for the comments. I will check your advices. Actually I
already watched everything on youtube and other resources☺ But it needs
more time to perceive all the info correctly...
9 Май 2017 г. 20:44 пользователь "Vadim Yanitskiy"
<axilirator(a)gmail.com>
написал:
Hi,
> I found that the manual from the main site is outdated.
Yeah, still couldn't find some time to update the wiki.
> If I understood it correct, I have to setup calypso bts
> as bts of type nanoBTS, correct?
Why do you think so? No, CalypsoBTS has nothing related
toip.access nanoBTS. From the other side, we don't have
a dedicated type for OsmoBTS, so you can use 'sysmoBTS'.
> I can sync with commercial cell, I can run OsmoBSC and
> OsmoBTS but I still cannot find my network from my personal
> phone in searching mode.
Please watch a great Sylvain's talk, where he explained
almost everything you need to know:
"Further hacks on the Calypso platform"
https://media.ccc.de/v/29c3-5226-en-further_hacks_calypso_h264
In short: BTS should transmit a continuous beacon on C0 to be
detected. Normal MS can't do that. CalypsoBTS was hacked to
perform the following timeslot layout: Tt_R_ttt, where
'T' means TX on Downlink, 'R' means RX on Uplink, and 't' means
channel filling - dummy bursts. Phone cannot RX and TX at the
same time, so one phone serves only one TS. With two phones
you have the following layout: TT_RRttt, so you have two
timeslots served.
This is why you will have some detection troubles even with
working BSS setup :/
> In logs of osmo-bts I can see:
>
> <0000> rsl.c:246 Tx RSL RF RESource INDication
> <000b> trx_if.c:397 transceiver (phy0.0) rejected TRX command with
> response: 'RSP SETTSC -1'
> <0000> rsl.c:2353 (bts=0,trx=0,ts=0,ss=0) Rx RSL BCCH_INFO
Just delete the 'settsc' line from your config, because CalypsoBTS
transceiver only supports 'setbsic'.
Have a fun!
With best regards,
Vadim Yanitskiy.
10:58 a.m.
New subject: CalypsoBTS and modern OsmoBSC
Hi,
(bts=0,trx=0,ts=1,ss=0)
Why SMS transmission is on TS1?
Which channel configuration do you use?
With best regards,
Vadim Yanitskiy.
2017-05-11 13:43 GMT+03:00 Anton Gorbachev <antgorka(a)gmail.com>om>:
OK,
I tried Ubuntu 14.04 amd64 and Segmantation error disappeared. I can
connect to my network, register subscribers, perform USSD but now I cannot
receive SMS.
In NITB logs I can see an error. <0022> gsm0411_smc.c:331 SMC(0) cannot
release yet current state: WAIT_CP_ACK
Don't you know what can it mean?
More details:
<0002> gsm_04_08.c:1016 <- CM SERVICE REQUEST serv_type=0x04
MI(TMSI)=3404602319
<0002> gsm_04_08_utils.c:662 -> CM SERVICE ACK
<0002> gsm_subscriber.c:341 Subscriber 250996689298609 ATTACHED LAC=0
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=3 ESTABLISH INDICATION
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=3 ESTABLISH INDICATION
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=3 DATA INDICATION
<0000> gsm_04_08.c:3999 Dispatching 04.08 message, pdisc=9
<0001> transaction.c:71 subscr=0x26a3110, net=0x255cd50
<0022> gsm0411_smc.c:331 SMC(0) cannot release yet current state:
WAIT_CP_ACK
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=3 DATA INDICATION
<0000> gsm_04_08.c:3999 Dispatching 04.08 message, pdisc=9
<0000> chan_alloc.c:486 (bts=0,trx=0,ts=1,ss=0) starting release sequence
<0004> abis_rsl.c:1221 (bts=0,trx=0,ts=1,ss=0) state ACTIVE -> RELEASE
REQUESTED
<0000> abis_rsl.c:1191 (bts=0,trx=0,ts=1,ss=0) RSL RLL RELEASE REQ
(link_id=0x43, reason=1)
<0003> gsm_04_08_utils.c:251 Sending Channel Release: Chan: Number: 0
Type: 3
<0004> abis_rsl.c:767 (bts=0,trx=0,ts=1,ss=0) DEACTivate SACCH CMD
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=3 RELEASE CONFIRMATION
<0004> abis_rsl.c:2022 (bts=0,trx=0,ts=1,ss=0) waiting for SAPI=0 to be
released.
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=0 RELEASE INDICATION
<0004> abis_rsl.c:1715 (bts=0,trx=0,ts=1,ss=0) T3111 expired: releasing RF
Channel
<0004> abis_rsl.c:859 (bts=0,trx=0,ts=1,ss=0) RF Channel Release
<0004> abis_rsl.c:929 (bts=0,trx=0,ts=1,ss=0) RF CHANNEL RELEASE ACK
<0004> abis_rsl.c:1221 (bts=0,trx=0,ts=1,ss=0) state RELEASE REQUESTED ->
NONE
2017-05-10 15:48 GMT+03:00 Anton Gorbachev <antgorka(a)gmail.com>om>:
OK,
I reassembled all the files with "old" toolchain and now I can see
network but when I try to do a location update or add subscriver manually I
get
Segmentation fault (core dumped)
In syslog:
May 10 15:08:33 osmobox kernel: [ 740.703083] osmo-nitb[2517]: segfault
at 6e656d70 ip b778b589 sp bf84ba40 error 4 in
libdbdsqlite3.so[b7788000+8000]
It seems there is some issue with HLR's sqlite.
Did you meet such error before?
I found also this thread
http://lists.osmocom.org/pipermail/openbsc/2015-October/000578.html
Should I use x64 bit architexture to solve it? Do you have working setup
of calypsoBTS? What OS do you use for that?
Kind regards.
2017-05-10 10:51 GMT+03:00 Anton Gorbachev <antgorka(a)gmail.com>om>:
Hello again,
I set up bts like sysmobts but it seems there are some other issues.
If I understood it correct I must specify phys_channel_confif for all TS
of the BTS.
Otherwise OsmoBTS cannot get settings from OsmoBSC. What config should I
set for TS2-TS7?
And will "slotmask 1 1 0 0 0 0 0 0" affect somehow the OsmoBTS behaviour?
Now I can find my networks (sometimes :) but when my phone found it
OsmoBTS crashes with the following message...:
<0006> scheduler.c:1506 Set a5/0 uplink for SACCH/4(0) on trx=0 ts=0
<0006> scheduler.c:1506 Set a5/0 downlink for SDCCH/4(0) on trx=0 ts=0
<0006> scheduler.c:1506 Set a5/0 downlink for SACCH/4(0) on trx=0 ts=0
<0000> rsl.c:558 (bts=0,trx=0,ts=0,ss=0) Tx CHAN ACT ACK
<000b> trx_if.c:397 transceiver (phy0.0) rejected TRX command with
response: 'RSP NOHANDOVER -1'
<0001> bts.c:208 Shutting down BTS 0, Reason TRX-CTRL-MSG: CRITICAL
<0006> scheduler.c:240 Exit scheduler for trx=0
<0006> scheduler.c:216 Init scheduler for trx=0
2017-05-09 23:20 GMT+03:00 Anton Gorbachev <antgorka(a)gmail.com>om>:
Hi Vadim!
Thank you for the comments. I will check your advices. Actually I
already watched everything on youtube and other resources☺ But it needs
more time to perceive all the info correctly...
9 Май 2017 г. 20:44 пользователь "Vadim Yanitskiy" <
axilirator(a)gmail.com> написал:
Hi,
>
> > I found that the manual from the main site is outdated.
>
> Yeah, still couldn't find some time to update the wiki.
>
> > If I understood it correct, I have to setup calypso bts
> > as bts of type nanoBTS, correct?
>
> Why do you think so? No, CalypsoBTS has nothing related
> toip.access nanoBTS. From the other side, we don't have
> a dedicated type for OsmoBTS, so you can use 'sysmoBTS'.
>
> > I can sync with commercial cell, I can run OsmoBSC and
> > OsmoBTS but I still cannot find my network from my personal
> > phone in searching mode.
>
> Please watch a great Sylvain's talk, where he explained
> almost everything you need to know:
>
> "Further hacks on the Calypso platform"
> https://media.ccc.de/v/29c3-5226-en-further_hacks_calypso_h264
>
> In short: BTS should transmit a continuous beacon on C0 to be
> detected. Normal MS can't do that. CalypsoBTS was hacked to
> perform the following timeslot layout: Tt_R_ttt, where
> 'T' means TX on Downlink, 'R' means RX on Uplink, and 't'
means
> channel filling - dummy bursts. Phone cannot RX and TX at the
> same time, so one phone serves only one TS. With two phones
> you have the following layout: TT_RRttt, so you have two
> timeslots served.
>
> This is why you will have some detection troubles even with
> working BSS setup :/
>
> > In logs of osmo-bts I can see:
> >
> > <0000> rsl.c:246 Tx RSL RF RESource INDication
> > <000b> trx_if.c:397 transceiver (phy0.0) rejected TRX command with
> > response: 'RSP SETTSC -1'
> > <0000> rsl.c:2353 (bts=0,trx=0,ts=0,ss=0) Rx RSL BCCH_INFO
>
> Just delete the 'settsc' line from your config, because CalypsoBTS
> transceiver only supports 'setbsic'.
>
> Have a fun!
>
>
> With best regards,
> Vadim Yanitskiy.
>
11:11 a.m.
New subject: CalypsoBTS and modern OsmoBSC
Hi Vadim,
Here is what I see now
[image: Встроенное изображение 1]
I use the following configs now (attached).
BTW, I cannot receive calls also, it's trying to dial for a minute maybe
and then drop the connection. In logs I can see that TCH/H is being tryed
to be allocated..
It seems slotmask directive doesn't affec the behaviour at all. I cannot
anyway set only two timeslots in open-bsc.cfg. If so I get an error during
OML processes.
2017-05-11 13:58 GMT+03:00 Vadim Yanitskiy <axilirator(a)gmail.com>om>:
Hi,
(bts=0,trx=0,ts=1,ss=0)
Why SMS transmission is on TS1?
Which channel configuration do you use?
With best regards,
Vadim Yanitskiy.
2017-05-11 13:43 GMT+03:00 Anton Gorbachev <antgorka(a)gmail.com>om>:
OK,
I tried Ubuntu 14.04 amd64 and Segmantation error disappeared. I can
connect to my network, register subscribers, perform USSD but now I cannot
receive SMS.
In NITB logs I can see an error. <0022> gsm0411_smc.c:331 SMC(0) cannot
release yet current state: WAIT_CP_ACK
Don't you know what can it mean?
More details:
<0002> gsm_04_08.c:1016 <- CM SERVICE REQUEST serv_type=0x04
MI(TMSI)=3404602319
<0002> gsm_04_08_utils.c:662 -> CM SERVICE ACK
<0002> gsm_subscriber.c:341 Subscriber 250996689298609 ATTACHED LAC=0
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=3 ESTABLISH INDICATION
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=3 ESTABLISH INDICATION
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=3 DATA INDICATION
<0000> gsm_04_08.c:3999 Dispatching 04.08 message, pdisc=9
<0001> transaction.c:71 subscr=0x26a3110, net=0x255cd50
<0022> gsm0411_smc.c:331 SMC(0) cannot release yet current state:
WAIT_CP_ACK
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=3 DATA INDICATION
<0000> gsm_04_08.c:3999 Dispatching 04.08 message, pdisc=9
<0000> chan_alloc.c:486 (bts=0,trx=0,ts=1,ss=0) starting release sequence
<0004> abis_rsl.c:1221 (bts=0,trx=0,ts=1,ss=0) state ACTIVE -> RELEASE
REQUESTED
<0000> abis_rsl.c:1191 (bts=0,trx=0,ts=1,ss=0) RSL RLL RELEASE REQ
(link_id=0x43, reason=1)
<0003> gsm_04_08_utils.c:251 Sending Channel Release: Chan: Number: 0
Type: 3
<0004> abis_rsl.c:767 (bts=0,trx=0,ts=1,ss=0) DEACTivate SACCH CMD
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=3 RELEASE CONFIRMATION
<0004> abis_rsl.c:2022 (bts=0,trx=0,ts=1,ss=0) waiting for SAPI=0 to be
released.
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=0 RELEASE INDICATION
<0004> abis_rsl.c:1715 (bts=0,trx=0,ts=1,ss=0) T3111 expired: releasing
RF Channel
<0004> abis_rsl.c:859 (bts=0,trx=0,ts=1,ss=0) RF Channel Release
<0004> abis_rsl.c:929 (bts=0,trx=0,ts=1,ss=0) RF CHANNEL RELEASE ACK
<0004> abis_rsl.c:1221 (bts=0,trx=0,ts=1,ss=0) state RELEASE REQUESTED ->
NONE
2017-05-10 15:48 GMT+03:00 Anton Gorbachev <antgorka(a)gmail.com>om>:
OK,
I reassembled all the files with "old" toolchain and now I can see
network but when I try to do a location update or add subscriver manually I
get
Segmentation fault (core dumped)
In syslog:
May 10 15:08:33 osmobox kernel: [ 740.703083] osmo-nitb[2517]: segfault
at 6e656d70 ip b778b589 sp bf84ba40 error 4 in
libdbdsqlite3.so[b7788000+8000]
It seems there is some issue with HLR's sqlite.
Did you meet such error before?
I found also this thread
http://lists.osmocom.org/pipermail/openbsc/2015-October/000578.html
Should I use x64 bit architexture to solve it? Do you have working setup
of calypsoBTS? What OS do you use for that?
Kind regards.
2017-05-10 10:51 GMT+03:00 Anton Gorbachev <antgorka(a)gmail.com>om>:
Hello again,
I set up bts like sysmobts but it seems there are some other issues.
If I understood it correct I must specify phys_channel_confif for all
TS of the BTS.
Otherwise OsmoBTS cannot get settings from OsmoBSC. What config should
I set for TS2-TS7?
And will "slotmask 1 1 0 0 0 0 0 0" affect somehow the OsmoBTS
behaviour?
Now I can find my networks (sometimes :) but when my phone found it
OsmoBTS crashes with the following message...:
<0006> scheduler.c:1506 Set a5/0 uplink for SACCH/4(0) on trx=0 ts=0
<0006> scheduler.c:1506 Set a5/0 downlink for SDCCH/4(0) on trx=0 ts=0
<0006> scheduler.c:1506 Set a5/0 downlink for SACCH/4(0) on trx=0 ts=0
<0000> rsl.c:558 (bts=0,trx=0,ts=0,ss=0) Tx CHAN ACT ACK
<000b> trx_if.c:397 transceiver (phy0.0) rejected TRX command with
response: 'RSP NOHANDOVER -1'
<0001> bts.c:208 Shutting down BTS 0, Reason TRX-CTRL-MSG: CRITICAL
<0006> scheduler.c:240 Exit scheduler for trx=0
<0006> scheduler.c:216 Init scheduler for trx=0
2017-05-09 23:20 GMT+03:00 Anton Gorbachev <antgorka(a)gmail.com>om>:
> Hi Vadim!
>
> Thank you for the comments. I will check your advices. Actually I
> already watched everything on youtube and other resources☺ But it needs
> more time to perceive all the info correctly...
>
> 9 Май 2017 г. 20:44 пользователь "Vadim Yanitskiy" <
> axilirator(a)gmail.com> написал:
>
> Hi,
>>
>> > I found that the manual from the main site is outdated.
>>
>> Yeah, still couldn't find some time to update the wiki.
>>
>> > If I understood it correct, I have to setup calypso bts
>> > as bts of type nanoBTS, correct?
>>
>> Why do you think so? No, CalypsoBTS has nothing related
>> toip.access nanoBTS. From the other side, we don't have
>> a dedicated type for OsmoBTS, so you can use 'sysmoBTS'.
>>
>> > I can sync with commercial cell, I can run OsmoBSC and
>> > OsmoBTS but I still cannot find my network from my personal
>> > phone in searching mode.
>>
>> Please watch a great Sylvain's talk, where he explained
>> almost everything you need to know:
>>
>> "Further hacks on the Calypso platform"
>> https://media.ccc.de/v/29c3-5226-en-further_hacks_calypso_h264
>>
>> In short: BTS should transmit a continuous beacon on C0 to be
>> detected. Normal MS can't do that. CalypsoBTS was hacked to
>> perform the following timeslot layout: Tt_R_ttt, where
>> 'T' means TX on Downlink, 'R' means RX on Uplink, and 't'
means
>> channel filling - dummy bursts. Phone cannot RX and TX at the
>> same time, so one phone serves only one TS. With two phones
>> you have the following layout: TT_RRttt, so you have two
>> timeslots served.
>>
>> This is why you will have some detection troubles even with
>> working BSS setup :/
>>
>> > In logs of osmo-bts I can see:
>> >
>> > <0000> rsl.c:246 Tx RSL RF RESource INDication
>> > <000b> trx_if.c:397 transceiver (phy0.0) rejected TRX command with
>> > response: 'RSP SETTSC -1'
>> > <0000> rsl.c:2353 (bts=0,trx=0,ts=0,ss=0) Rx RSL BCCH_INFO
>>
>> Just delete the 'settsc' line from your config, because CalypsoBTS
>> transceiver only supports 'setbsic'.
>>
>> Have a fun!
>>
>>
>> With best regards,
>> Vadim Yanitskiy.
>>
>
12:59 p.m.
New subject: CalypsoBTS and modern OsmoBSC
Please, again, no-one should *ever* send image bitmaps of text screenshots to a
mailing list!
~N
6:01 p.m.
New subject: CalypsoBTS and modern OsmoBSC
Hi,
I could setup calypsoBTS, send sms and even do voice calls but only for few
seconds. Then capypsoBTS crashes.
@Vadim,
I remember you wrote somewhere you could setup calls for several minutes?
Maybe there are some amr settings or I need to use another codec or
something, don't you remember which setting did you use for voice call
routine?
What I can see in logs after I stop hearing anything:
OsmoBTS:
<0006> scheduler_trx.c:702 TCH/H(0) has not been served !! No prim for
trx=0 ts=1 at fn=1119261 to transmit.
<0006> scheduler_trx.c:535 TCH/H(1) Transmitting 'bad AMR frame' trx=0 ts=1
at fn=1119262.
<0006> scheduler_trx.c:702 TCH/H(1) has not been served !! No prim for
trx=0 ts=1 at fn=1119262 to transmit.
<0006> scheduler.c:524 TCH RTS.ind: chan=TCH/H(0) chan_nr=0x11 fn=1119269
ts=1 trx=0
<0006> scheduler.c:423 PH-DATA.req: chan_nr=0x11 link_id=0x00 fn=1119269
ts=1 trx=0
<0006> scheduler.c:446 TCH.req: chan_nr=0x11 fn=1119269 ts=1 trx=0
<0006> scheduler.c:524 TCH RTS.ind: chan=TCH/H(1) chan_nr=0x19 fn=1119270
ts=1 trx=0
<0006> scheduler.c:423 PH-DATA.req: chan_nr=0x19 link_id=0x00 fn=1119270
ts=1 trx=0
<0006> scheduler.c:446 TCH.req: chan_nr=0x19 fn=1119270 ts=1 trx=0
<0006> scheduler_trx.c:354 Missing TCH bursts detected, sending BFI for
TCH/H(0)
<0006> scheduler_trx.c:535 TCH/H(0) Transmitting 'bad AMR frame' trx=0 ts=1
at fn=1119265.
<0006> scheduler_trx.c:702 TCH/H(0) has not been served !! No prim for
trx=0 ts=1 at fn=1119265 to transmit.
<0006> scheduler_trx.c:354 Missing TCH bursts detected, sending BFI for
TCH/H(1)
<0006> scheduler_trx.c:535 TCH/H(1) Transmitting 'bad AMR frame' trx=0 ts=1
at fn=1119266.
<0006> scheduler_trx.c:702 TCH/H(1) has not been served !! No prim for
trx=0 ts=1 at fn=1119266 to transmit.
<0006> scheduler.c:524 TCH RTS.ind: chan=TCH/H(0) chan_nr=0x11 fn=1119274
ts=1 trx=0
<0006> scheduler.c:446 TCH.req: chan_nr=0x11 fn=1119274 ts=1 trx=0
<0006> scheduler_trx.c:535 TCH/H(0) Transmitting 'bad AMR frame' trx=0 ts=1
at fn=1119269.
<0006> scheduler_trx.c:702 TCH/H(0) has not been served !! No prim for
trx=0 ts=1 at fn=1119269 to transmit.
OsmoBSC:
<0001> gsm_04_08.c:3894 (bts 0 trx 0 ts 1 ti 8 sub 44680) Received 'SETUP'
from MS in state 0 (NULL)
<0001> gsm_04_08.c:3899 Unknown transaction ID 8, creating new trans.
<0001> transaction.c:71 subscr=0xd67f60, net=0xc08d50
<0001> gsm_04_08.c:1623 new state NULL -> INITIATED
<0001> gsm_04_08.c:2302 Subscriber 250996689298609 (44680) sends SETUP to
43926
<0001> gsm_04_08.c:1685 (bts 0 trx 0 ts 1 ti 8 sub 44680) Sending
'MNCC_SETUP_IND' to MNCC.
<0001> gsm_04_08.c:3796 (bts 0 trx 0 ts 1 ti 08 sub 44680) Received
'MNCC_CALL_PROC_REQ' from MNCC in state 1 (INITIATED)
<0001> gsm_04_08.c:1623 new state INITIATED -> MO_CALL_PROC
<0001> gsm_04_08.c:143 (bts 0 trx 0 ts 1 ti 80) Sending 'CALL_PROC' to MS.
<0001> gsm_04_08.c:3796 (bts 0 trx 0 ts 1 ti 08 sub 44680) Received
'MNCC_LCHAN_MODIFY' from MNCC in state 3 (MO_CALL_PROC)
<000a> bsc_api.c:404 Sending (bts=0,trx=0,ts=1,ss=0) ChanModify for speech:
SPEECH_AMR on channel TCH_H
<0003> gsm_04_08_utils.c:512 -> CHANNEL MODE MODIFY mode=0x41
<0001> transaction.c:71 subscr=0xd77ad0, net=0xc08d50
<0002> gsm_subscriber.c:190 Subscriber 250202101944311 not paged yet.
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=0 DATA INDICATION
<0003> gsm_04_08_utils.c:537 CHANNEL MODE MODIFY ACK
<0004> abis_rsl.c:2268 (bts=0,trx=0,ts=1,ss=0) IPAC_BIND speech_mode=0x15
RTP_PAYLOAD=98
<0003> osmo_msc.c:76 MSC assign complete (do nothing).
<0004> abis_rsl.c:1608 (bts=0,trx=0,ts=1,ss=0) CHANNEL MODE MODIFY ACK
<0004> abis_rsl.c:2449 (bts=0,trx=0,ts=1,ss=0) IPAC_CRCX_ACK
LOCAL_IP=127.0.0.1 LOCAL_PORT=10880 CON_ID=0
<0000> chan_alloc.c:352 (bts=0,trx=0,ts=1,pchan=TCH/H) Allocating lchan=1
as TCH_H
<0004> abis_rsl.c:1863 (bts=0,trx=0,ts=1,ss=1) Activating ARFCN(866) SS(1)
lctype TCH_H r=PAGING ra=0x2d ta=0
<0004> abis_rsl.c:585 (bts=0,trx=0,ts=1,pchan=TCH/H) Tx RSL Channel
Activate with act_type=INITIAL
<0004> abis_rsl.c:1221 (bts=0,trx=0,ts=1,ss=1) state NONE -> ACTIVATION
REQUESTED
<0004> abis_rsl.c:1587 (bts=0,trx=0,ts=1,ss=1) CHANNEL ACTIVATE ACK
<0004> abis_rsl.c:1221 (bts=0,trx=0,ts=1,ss=1) state ACTIVATION REQUESTED
-> ACTIVE
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=1) SAPI=0 ESTABLISH INDICATION
<0000> gsm_04_08.c:3999 Dispatching 04.08 message, pdisc=6
<0003> gsm_04_08.c:1462 PAGING RESPONSE: MI(TMSI)=2399361011
<0003> gsm_04_08.c:1495 <- Channel was requested by 250202101944311
<0001> gsm_04_08.c:1755 Paging subscr 43926 succeeded!
<0001> gsm_04_08.c:2226 starting timer T303 with 30 seconds
<0001> gsm_04_08.c:1623 new state NULL -> CALL_PRESENT
<0001> gsm_04_08.c:143 (bts 0 trx 0 ts 1 ti 00) Sending 'SETUP' to MS.
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=1) SAPI=0 DATA INDICATION
<0000> gsm_04_08.c:3999 Dispatching 04.08 message, pdisc=3
<0001> gsm_04_08.c:3894 (bts 0 trx 0 ts 1 ti 0 sub 43926) Received
'CALL_CONF' from MS in state 6 (CALL_PRESENT)
<0001> gsm_04_08.c:1665 stopping pending timer T303
<0001> gsm_04_08.c:2226 starting timer T310 with 180 seconds
<0001> gsm_04_08.c:1623 new state CALL_PRESENT -> MO_TERM_CALL_CONF
<0001> gsm_04_08.c:1685 (bts 0 trx 0 ts 1 ti 0 sub 43926) Sending
'MNCC_CALL_CONF_IND' to MNCC.
<0001> gsm_04_08.c:3796 (bts 0 trx 0 ts 1 ti 00 sub 43926) Received
'MNCC_LCHAN_MODIFY' from MNCC in state 9 (MO_TERM_CALL_CONF)
<000a> bsc_api.c:404 Sending (bts=0,trx=0,ts=1,ss=1) ChanModify for speech:
SPEECH_AMR on channel TCH_H
<0003> gsm_04_08_utils.c:512 -> CHANNEL MODE MODIFY mode=0x41
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=1) SAPI=0 DATA INDICATION
<0003> gsm_04_08_utils.c:537 CHANNEL MODE MODIFY ACK
<0004> abis_rsl.c:2268 (bts=0,trx=0,ts=1,ss=1) IPAC_BIND speech_mode=0x15
RTP_PAYLOAD=98
<0003> osmo_msc.c:76 MSC assign complete (do nothing).
<0004> abis_rsl.c:1608 (bts=0,trx=0,ts=1,ss=1) CHANNEL MODE MODIFY ACK
<0004> abis_rsl.c:2449 (bts=0,trx=0,ts=1,ss=1) IPAC_CRCX_ACK
LOCAL_IP=127.0.0.1 LOCAL_PORT=52342 CON_ID=0
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=1) SAPI=0 DATA INDICATION
<0000> gsm_04_08.c:3999 Dispatching 04.08 message, pdisc=3
<0001> gsm_04_08.c:3894 (bts 0 trx 0 ts 1 ti 0 sub 43926) Received
'ALERTING' from MS in state 9 (MO_TERM_CALL_CONF)
<0001> gsm_04_08.c:1665 stopping pending timer T310
<0001> gsm_04_08.c:2226 starting timer T301 with 180 seconds
<0001> gsm_04_08.c:1623 new state MO_TERM_CALL_CONF -> CALL_RECEIVED
<0001> gsm_04_08.c:1685 (bts 0 trx 0 ts 1 ti 0 sub 43926) Sending
'MNCC_ALERT_IND' to MNCC.
<0001> gsm_04_08.c:3796 (bts 0 trx 0 ts 1 ti 08 sub 44680) Received
'MNCC_ALERT_REQ' from MNCC in state 3 (MO_CALL_PROC)
<0001> gsm_04_08.c:1623 new state MO_CALL_PROC -> CALL_DELIVERED
<0001> gsm_04_08.c:143 (bts 0 trx 0 ts 1 ti 80) Sending 'ALERTING' to MS.
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=1) SAPI=0 DATA INDICATION
<0000> gsm_04_08.c:3999 Dispatching 04.08 message, pdisc=3
<0001> gsm_04_08.c:3894 (bts 0 trx 0 ts 1 ti 0 sub 43926) Received
'CONNECT' from MS in state 7 (CALL_RECEIVED)
<0001> gsm_04_08.c:1665 stopping pending timer T301
<0001> gsm_04_08.c:1623 new state CALL_RECEIVED -> CONNECT_REQUEST
<0001> gsm_04_08.c:1685 (bts 0 trx 0 ts 1 ti 0 sub 43926) Sending
'MNCC_SETUP_CNF' to MNCC.
<0001> gsm_04_08.c:3796 (bts 0 trx 0 ts 1 ti 00 sub 43926) Received
'MNCC_SETUP_COMPL_REQ' from MNCC in state 8 (CONNECT_REQUEST)
<0001> gsm_04_08.c:1623 new state CONNECT_REQUEST -> ACTIVE
<0001> gsm_04_08.c:143 (bts 0 trx 0 ts 1 ti 00) Sending 'CONNECT_ACK' to
MS.
<0001> gsm_04_08.c:3796 (bts 0 trx 0 ts 1 ti 08 sub 44680) Received
'MNCC_SETUP_RSP' from MNCC in state 4 (CALL_DELIVERED)
<0001> gsm_04_08.c:2226 starting timer T313 with 30 seconds
<0001> gsm_04_08.c:1623 new state CALL_DELIVERED -> CONNECT_IND
<0001> gsm_04_08.c:143 (bts 0 trx 0 ts 1 ti 80) Sending 'CONNECT' to MS.
<0001> gsm_04_08.c:1939 Setting up TCH map between (bts=0,trx=0,ts=1,TCH_H)
and (bts=0,trx=0,ts=1,TCH_H)
<0004> abis_rsl.c:2307 (bts=0,trx=0,ts=1,ss=1) IPAC_MDCX IP=127.0.0.1
PORT=30002 RTP_PAYLOAD=98 RTP_PAYLOAD2=0 CONN_ID=0 speech_mode=0x05
<0004> abis_rsl.c:2307 (bts=0,trx=0,ts=1,ss=0) IPAC_MDCX IP=127.0.0.1
PORT=30000 RTP_PAYLOAD=98 RTP_PAYLOAD2=0 CONN_ID=0 speech_mode=0x05
<0004> abis_rsl.c:2459 (bts=0,trx=0,ts=1,ss=1) IPAC_MDCX_ACK
LOCAL_IP=127.0.0.1 LOCAL_PORT=52342 CON_ID=0
<0004> abis_rsl.c:2459 (bts=0,trx=0,ts=1,ss=0) IPAC_MDCX_ACK
LOCAL_IP=127.0.0.1 LOCAL_PORT=10880 CON_ID=0
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=0 DATA INDICATION
<0000> gsm_04_08.c:3999 Dispatching 04.08 message, pdisc=3
<0001> gsm_04_08.c:3894 (bts 0 trx 0 ts 1 ti 8 sub 44680) Received
'CONNECT_ACK' from MS in state 28 (CONNECT_IND)
<0001> gsm_04_08.c:1665 stopping pending timer T313
<0001> gsm_04_08.c:1623 new state CONNECT_IND -> ACTIVE
<0001> gsm_04_08.c:1685 (bts 0 trx 0 ts 1 ti 8 sub 44680) Sending
'MNCC_SETUP_COMPL_IND' to MNCC.
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=0) SAPI=0 DATA INDICATION
<0000> gsm_04_08.c:3999 Dispatching 04.08 message, pdisc=3
<0001> gsm_04_08.c:3894 (bts 0 trx 0 ts 1 ti 8 sub 44680) Received
'DISCONNECT' from MS in state 10 (ACTIVE)
<0001> gsm_04_08.c:1623 new state ACTIVE -> DISCONNECT_IND
<0001> gsm_04_08.c:1685 (bts 0 trx 0 ts 1 ti 8 sub 44680) Sending
'MNCC_DISC_IND' to MNCC.
<0001> gsm_04_08.c:3796 (bts 0 trx 0 ts 1 ti 08 sub 44680) Received
'MNCC_REL_REQ' from MNCC in state 12 (DISCONNECT_IND)
<0001> gsm_04_08.c:2226 starting timer T308 with 10 seconds
<0001> gsm_04_08.c:1623 new state DISCONNECT_IND -> RELEASE_REQ
<0001> gsm_04_08.c:143 (bts 0 trx 0 ts 1 ti 80) Sending 'RELEASE' to MS.
<0001> gsm_04_08.c:3796 (bts 0 trx 0 ts 1 ti 00 sub 43926) Received
'MNCC_DISC_REQ' from MNCC in state 10 (ACTIVE)
<0001> gsm_04_08.c:2226 starting timer T306 with 30 seconds
<0001> gsm_04_08.c:1623 new state ACTIVE -> DISCONNECT_IND
<0001> gsm_04_08.c:143 (bts 0 trx 0 ts 1 ti 00) Sending 'DISCONNECT' to MS.
<0000> abis_rsl.c:2051 (bts=0,trx=0,ts=1,ss=1) SAPI=0 DATA INDICATION
<0000> gsm_04_08.c:3999 Dispatching 04.08 message, pdisc=3
<0001> gsm_04_08.c:3894 (bts 0 trx 0 ts 1 ti 0 sub 43926) Received
'DISCONNECT' from MS in state 12 (DISCONNECT_IND)
<0001> gsm_04_08.c:1665 stopping pending timer T306
<0001> gsm_04_08.c:1623 new state DISCONNECT_IND -> DISCONNECT_IND
<0001> gsm_04_08.c:1685 (bts 0 trx 0 ts 1 ti 0 sub 43926) Sending
'MNCC_DISC_IND' to MNCC.
<0001> gsm_04_08.c:3796 (bts 0 trx 0 ts 1 ti 00 sub 43926) Received
'MNCC_REL_REQ' from MNCC in state 12 (DISCONNECT_IND)
<0001> gsm_04_08.c:2226 starting timer T308 with 10 seconds
<0001> gsm_04_08.c:1623 new state DISCONNECT_IND -> RELEASE_REQ
<0001> gsm_04_08.c:143 (bts 0 trx 0 ts 1 ti 00) Sending 'RELEASE' to MS.
<0001> gsm_04_08.c:3796 (bts 0 trx 0 ts 1 ti 08 sub 44680) Received
'MNCC_DISC_REQ' from MNCC in state 19 (RELEASE_REQ)
<0001> gsm_04_08.c:3804 Message unhandled at this state.
<0001> gsm_04_08.c:2226 starting timer T308 with 10 seconds
<0001> gsm_04_08.c:143 (bts 0 trx 0 ts 1 ti 80) Sending 'RELEASE' to MS.
<0001> gsm_04_08.c:2226 starting timer T308 with 10 seconds
<0001> gsm_04_08.c:143 (bts 0 trx 0 ts 1 ti 00) Sending 'RELEASE' to MS.
<0001> gsm_04_08.c:1685 (bts 0 trx 0 ts 1 ti 8 sub 44680) Sending
'MNCC_REL_CNF' to MNCC.
<0001> gsm_04_08.c:1623 new state RELEASE_REQ -> NULL
<0000> chan_alloc.c:486 (bts=0,trx=0,ts=1,ss=0) starting release sequence
<0004> abis_rsl.c:1221 (bts=0,trx=0,ts=1,ss=0) state ACTIVE -> RELEASE
REQUESTED
<0003> gsm_04_08_utils.c:251 Sending Channel Release: Chan: Number: 0 Type:
3
<0004> abis_rsl.c:767 (bts=0,trx=0,ts=1,ss=0) DEACTivate SACCH CMD
<0001> gsm_04_08.c:1685 (bts 0 trx 0 ts 1 ti 0 sub 43926) Sending
'MNCC_REL_CNF' to MNCC.
<0001> gsm_04_08.c:1623 new state RELEASE_REQ -> NULL
<0000> chan_alloc.c:486 (bts=0,trx=0,ts=1,ss=1) starting release sequence
<0004> abis_rsl.c:1221 (bts=0,trx=0,ts=1,ss=1) state ACTIVE -> RELEASE
REQUESTED
<0003> gsm_04_08_utils.c:251 Sending Channel Release: Chan: Number: 1 Type:
3
Meanwhile I will try to collect more debug logs..
P.S. I am doing pure GSM call, w/o SIP. Maybe call from MS to VoIP will be
more stable...
2017-05-11 15:59 GMT+03:00 Neels Hofmeyr <nhofmeyr(a)sysmocom.de>de>:
Please, again, no-one should *ever* send image bitmaps
of text screenshots
to a
mailing list!
~N
3009
days inactive
3011
days old
baseband-devel@lists.osmocom.org
8 comments
3 participants
participants (3)
-
Anton Gorbachev -
Neels Hofmeyr -
Vadim Yanitskiy
