[M] Change in osmo-msc[master]: msc_log_to_ladder.py: various tweaks
by neels 08 Mar '23

08 Mar '23

neels has uploaded this change for review. ( https://gerrit.osmocom.org/c/osmo-msc/+/31744 ) Change subject: msc_log_to_ladder.py: various tweaks ...................................................................... msc_log_to_ladder.py: various tweaks (multiple changes in one patch because who cares about this script) tweak regexes -- they worked ok, but some of the '[^:]' should really be '[^:)]', and they also look happier that way. don't skip RAN=NONE, so we also see messages before Complete Layer 3. s/sip/mncc, to generally be valid for both internal and external MNCC. pick up RTP port information from MGCP OK pick up RTP port information from MNCC rx and tx add --verbose flag, to be able to check whether the regex rules are still working (getting any hits). fix rule_imsi_detach: should return True to be counted in --verbose. tweak comment 'Generated by...' to include the full git path. Change-Id: If619182ba76c6b238a1fa105a3c3449d7f473dd1 --- M doc/sequence_charts/msc_log_to_ladder.py 1 file changed, 76 insertions(+), 18 deletions(-) git pull ssh://gerrit.osmocom.org:29418/osmo-msc refs/changes/44/31744/1 diff --git a/doc/sequence_charts/msc_log_to_ladder.py b/doc/sequence_charts/msc_log_to_ladder.py index 30b6594..9bfb9c9 100755 --- a/doc/sequence_charts/msc_log_to_ladder.py +++ b/doc/sequence_charts/msc_log_to_ladder.py @@ -53,7 +53,7 @@ MS_UE_UNKNOWN = 'ms' #None MSC = 'msc' MGW = 'mgw' -SIP = 'sip' +MNCC = 'mncc' MO = 'mo' MT = 'mt' @@ -69,7 +69,7 @@ self.start_with_re = re.compile(start_with_re) def head(self): - self.writeln('# Generated by msc_log_to_ladder.py') + self.writeln('# Generated by osmo-msc.git/doc/sequence_charts/msc_log_to_ladder.py') def tail(self): pass @@ -129,7 +129,7 @@ mo_mt = arrow.mo_mt or MO def prepend_mo_mt(name): - if name in ('.', SIP): + if name in ('.', MNCC): return name return '%s%s' % (mo_mt, name) @@ -222,7 +222,7 @@ mo_mt = arrow.mo_mt or MO def prepend_mo_mt(name): - if name in ('.', SIP): + if name in ('.', MNCC): return name return '%s%s' % (mo_mt, name) @@ -371,6 +371,7 @@ self.output = output self.linenr = 0 self.rules = [] + self.rules_hit = {} self.seen_udtrace_mncc = False self.callrefs_mo_mt = {} @@ -390,6 +391,7 @@ re_str = docstr.splitlines()[0] self.rules.append(Rule(name=member, re_str=re_str, handler=func)) + self.rules_hit[member] = 0 @@ -403,7 +405,7 @@ #('moue', 'UE,hNodeB (MO)'), ('momgw', 'MGW for MSC (MO)'), ('momsc', 'MSC (MO)'), - ('sip', 'MNCC to PBX via\nosmo-sip-connector'), + ('mncc', 'MNCC'), ('mtmsc', 'MSC (MT)'), ('mtmgw', 'MGW for MSC (MT)'), ('mtms', 'BSS,MS (MT)\\nhNodeB,UE (MT)'), @@ -448,6 +450,7 @@ for rule in self.rules: if rule.match(line): + self.rules_hit[rule.name] = self.rules_hit.get(rule.name, 0) + 1 break RE_DTAP_NAME = re.compile('.*GSM48_MT_([^_]+)_(.+)') @@ -473,7 +476,8 @@ dtap = '%s %s' % m.groups() if 'IMSI_DETACH_IND' in dtap: - # detecting IMSI Detach separately + # detecting IMSI Detach separately, because this log line does not contain the IMSI. + # By using the rule_imsi_detach(), we can accurately put it on the MO/MT side. return True if l3type == 'NONE' and not tx and dtap.endswith('PAG_RESP'): @@ -497,6 +501,7 @@ imsi = m.group(1) e = MO_MT_UNKNOWN self.diagram.add_line(Arrow(e, MS_UE_UNKNOWN, '>', MSC, 'IMSI Detach', imsi=imsi)) + return True def rule_mgcp_tx(self, m): r'.*mgw-endp$[^)]*:([^:]+):([^:]+)$.* (rtpbridge[^ ]+) .* RTP_TO_(RAN|CN)( CI=([^:]+)|): ([^ :]+).*: Sending' @@ -512,19 +517,20 @@ return True def rule_mgcp_rx(self, m): - r'.*mgw-endp$[^)]*:([^:]+):([^:]+)$.* (rtpbridge[^ ]+) .* RTP_TO_(RAN|CN)( CI=([^:]+)|).*: received successful response to ([^:]+): (.*)' - ran, l3type, endp, rtp_to, cond_ci, ci, verb, details = m.groups() + r'.*mgw-endp$([^)]+):([^:)]+):([^:)]+)$.* (rtpbridge[^ ]+) .* RTP_TO_(RAN|CN)( CI=([^:]+)|).*: received successful response to ([^:]+): RTP=[^:]+:([0-9.:]+)' + subscr, ran_conn, l3type, endp, rtp_to, cond_ci, ci, verb, rtp = m.groups() e = mo_mt_from_l3type(l3type) endp = self.mask_value('EP', endp) ci = self.mask_value('CI', ci) ci_str = '' if ci: ci_str = ' %s' % ci - self.diagram.add_line(Arrow(e, MGW, '>', MSC, 'for %s: %s OK\\n%s%s' % (rtp_to, verb, endp, ci_str))) + rtp = self.mask_value('IP:port', rtp) + self.diagram.add_line(Arrow(e, MGW, '>', MSC, 'for %s: %s OK\\n%s%s %s' % (rtp_to, verb, endp, ci_str, rtp))) return True def rule_ran_tx(self, m): - r'.*msc_a$([^)]*):([^:]+):([^:]+)$.* RAN encode: ([^: ]+): (.+)$' + r'.*msc_a$([^)]+):([^:)]+):([^:)]+)$.* RAN encode: ([^: ]+): (.+)$' subscr, ran_conn, l3type, ran_type, msg_type = m.groups() @@ -538,8 +544,6 @@ # skip 'RAB Assignment: rab_id=1, rtp=192.168.178.66:50008, use_x213_nsap=1' return True - if l3type == 'NONE': - return True e = mo_mt_from_l3type(l3type) @@ -555,7 +559,7 @@ return True def rule_ran_rx(self, m): - r'.*msc_a$([^)]*):([^:]+):([^:]+)$.* RAN decode: ([^: ]+) (.+)$' + r'.*msc_a$([^)]+):([^:)]+):([^:)]+)$.* RAN decode: ([^: ]+) (.+)$' subscr, ran_conn, l3type, ran_type, msg_type = m.groups() @@ -563,8 +567,6 @@ # will get DTAP details from rule_dtap() instead, not from BSSMAP logging return True - if l3type == 'NONE': - return True e = mo_mt_from_l3type(l3type) @@ -589,7 +591,7 @@ self.diagram.add_line(Arrow(e, MSC, '<>', '.', 'CC state:\\n%s' % to_state)) return True - def rule_log_mncc(self, m): + def rule_log_mncc_no_rtp(self, m): r'.*trans$CC[^) ]* [^ )]+:([^:)]+) callref-([^ ]+) [^)]+$ (tx|rx) (MNCC_[^ ]*)$' l3type, callref_hex, tx_rx, mncc_msg = m.groups() @@ -605,12 +607,34 @@ except: e = MT - self.diagram.add_line(Arrow(e, MSC, '>' if tx else '<', 'sip', mncc_msg)) + self.diagram.add_line(Arrow(e, MSC, '>' if tx else '<', 'mncc', mncc_msg)) + return True + + def rule_log_mncc_with_rtp(self, m): + r'.*trans$CC[^) ]* [^ )]+:([^:)]+) callref-([^ ]+) [^)]+$ (tx|rx) (MNCC_[^ ]*) $RTP=([^){]+)(|{.*})$$' + l3type, callref_hex, tx_rx, mncc_msg, rtp, codec = m.groups() + + if self.seen_udtrace_mncc: + # If no udtrace is present, take the MNCC logging. + # But if there is udtrace logging available, we should not duplicate those MNCC lines. + return True + + tx = (tx_rx == 'tx') + + try: + e = self.callrefs_mo_mt.get(callref_hex, MT) + except: + e = MT + + rtp = self.mask_value('IP:port', rtp) + self.diagram.add_line(Arrow(e, MSC, '>' if tx else '<', 'mncc', f'{mncc_msg}\\n{rtp}')) return True RE_MNCC_RTP = re.compile(' ip := ([^, ]+), rtp_port := ([0-9]+),') RE_MNCC_CALLREF = re.compile(' callref := ([^ ,]+), ') + # detecting MNCC with udtrace has the advantage that we also get an indication whether RTP information is + # present def rule_udtrace_mncc(self, m): r'.*(write|recv).* (Tx|Rx): \{ msg_type := ([^ ]+) .* u := \{ (.*) \} \}$' write_recv, tx_rx, msg_type, u = m.groups() @@ -650,7 +674,7 @@ descr = '%s\\n%s' % (descr, rtp_info) break - self.diagram.add_line(Arrow(e, MSC, '>' if tx else '<', 'sip', descr)) + self.diagram.add_line(Arrow(e, MSC, '>' if tx else '<', 'mncc', descr)) return True def rule_cc_timer(self, m): @@ -680,6 +704,9 @@ break; parse.add_line(line) parse.end() + if cmdline.verbose: + for name, count in parse.rules_hit.items(): + print(f" {name}: {count}") def open_output(inf, cmdline): if cmdline.output_file == '-': @@ -716,6 +743,8 @@ ' present. This makes the output reproducible across various logs.') parser.add_argument('-s', '--start-with', dest='start_with_re', default=None, help='Skip until the first message with this label (regex), e.g. -s "CC SETUP"') + parser.add_argument('-v', '--verbose', dest='verbose', action='store_true', + help='show some debug info, like which regex rules were hit and which were not.') cmdline = parser.parse_args() -- To view, visit https://gerrit.osmocom.org/c/osmo-msc/+/31744 To unsubscribe, or for help writing mail filters, visit https://gerrit.osmocom.org/settings Gerrit-Project: osmo-msc Gerrit-Branch: master Gerrit-Change-Id: If619182ba76c6b238a1fa105a3c3449d7f473dd1 Gerrit-Change-Number: 31744 Gerrit-PatchSet: 1 Gerrit-Owner: neels <nhofmeyr(a)sysmocom.de> Gerrit-MessageType: newchange

1 0

[XL] Change in osmo-msc[master]: [codecs filter] msc_vlr_test_call: test codecs resolution
by neels 08 Mar '23

08 Mar '23

Attention is currently required from: neels. Hello Jenkins Builder, pespin, I'd like you to reexamine a change. Please visit https://gerrit.osmocom.org/c/osmo-msc/+/31702 to look at the new patch set (#6). Change subject: [codecs filter] msc_vlr_test_call: test codecs resolution ...................................................................... [codecs filter] msc_vlr_test_call: test codecs resolution Show that the codecs filter now works as expected in call messaging. Related: SYS#5066 Change-Id: I879ec61f523ad4ffc69a0b02810591f7c0261ff9 --- M tests/msc_vlr/msc_vlr_test_call.c M tests/msc_vlr/msc_vlr_test_call.err M tests/msc_vlr/msc_vlr_tests.c M tests/msc_vlr/msc_vlr_tests.h 4 files changed, 3,681 insertions(+), 8 deletions(-) git pull ssh://gerrit.osmocom.org:29418/osmo-msc refs/changes/02/31702/6 -- To view, visit https://gerrit.osmocom.org/c/osmo-msc/+/31702 To unsubscribe, or for help writing mail filters, visit https://gerrit.osmocom.org/settings Gerrit-Project: osmo-msc Gerrit-Branch: master Gerrit-Change-Id: I879ec61f523ad4ffc69a0b02810591f7c0261ff9 Gerrit-Change-Number: 31702 Gerrit-PatchSet: 6 Gerrit-Owner: neels <nhofmeyr(a)sysmocom.de> Gerrit-Reviewer: Jenkins Builder Gerrit-Reviewer: pespin <pespin(a)sysmocom.de> Gerrit-Attention: neels <nhofmeyr(a)sysmocom.de> Gerrit-MessageType: newpatchset

1 0

[S] Change in osmo-msc[master]: make: doc/sequence_charts: use wildcards for EXTRA_DIST and CLEANFILES
by neels 08 Mar '23

08 Mar '23

neels has uploaded this change for review. ( https://gerrit.osmocom.org/c/osmo-msc/+/31742 ) Change subject: make: doc/sequence_charts: use wildcards for EXTRA_DIST and CLEANFILES ...................................................................... make: doc/sequence_charts: use wildcards for EXTRA_DIST and CLEANFILES Both EXTRA_DIST and CLEANFILES had missing entries. It is easy to forget to keep them up to date. Rather use wildcards to always pick up all relevant files. (Not adding *.dot because there are no .dot charts here, yet.) Change-Id: I3a18e4608a310169d7c9cd9c1b8ac9015a990920 --- M doc/sequence_charts/Makefile.am 1 file changed, 17 insertions(+), 8 deletions(-) git pull ssh://gerrit.osmocom.org:29418/osmo-msc refs/changes/42/31742/1 diff --git a/doc/sequence_charts/Makefile.am b/doc/sequence_charts/Makefile.am index 5efe855..b4a55e0 100644 --- a/doc/sequence_charts/Makefile.am +++ b/doc/sequence_charts/Makefile.am @@ -4,17 +4,11 @@ charts: msc dot EXTRA_DIST = \ - inter_bsc_ho.msc \ - inter_msc_ho.msc \ - mncc_call_fsm.msc \ - call_reestablishment.msc \ + *.msc \ $(NULL) CLEANFILES = \ - inter_bsc_ho.png \ - inter_msc_ho.png \ - mncc_call_fsm.png \ - voice_call_full.png \ + *.png \ $(NULL) msc: \ -- To view, visit https://gerrit.osmocom.org/c/osmo-msc/+/31742 To unsubscribe, or for help writing mail filters, visit https://gerrit.osmocom.org/settings Gerrit-Project: osmo-msc Gerrit-Branch: master Gerrit-Change-Id: I3a18e4608a310169d7c9cd9c1b8ac9015a990920 Gerrit-Change-Number: 31742 Gerrit-PatchSet: 1 Gerrit-Owner: neels <nhofmeyr(a)sysmocom.de> Gerrit-MessageType: newchange

1 0

[M] Change in osmo-msc[master]: tweak MNCC logging, add RTP info
by neels 08 Mar '23

08 Mar '23

neels has uploaded this change for review. ( https://gerrit.osmocom.org/c/osmo-msc/+/31743 ) Change subject: tweak MNCC logging, add RTP info ...................................................................... tweak MNCC logging, add RTP info Omit "in state FOO", because LOG_TRANS() already logs the state. Most MNCC "rx" logging was duplicated. Log "rx" only once. If there is RTP information passed with the MNCC message, log it: - if there is SDP, log the SDP information. - if there is no SDP, log the legacy MNCC RTP fields, if any. One motivation to do this is to get RTP information in ladder diagrams generated by msc_log_to_ladder.py without the need to add udtrace MNCC logging to osmo-msc; and also to get RTP info for internal MNCC, where udtrace doesn't apply, because no unix domain socket is involved in internal MNCC operation. Change-Id: I4b916cb482ed441b508c6295de211a21c49cd5c1 --- M src/libmsc/gsm_04_08_cc.c M tests/msc_vlr/msc_vlr_test_call.err 2 files changed, 96 insertions(+), 33 deletions(-) git pull ssh://gerrit.osmocom.org:29418/osmo-msc refs/changes/43/31743/1 diff --git a/src/libmsc/gsm_04_08_cc.c b/src/libmsc/gsm_04_08_cc.c index 771ddbc..da7fcc2 100644 --- a/src/libmsc/gsm_04_08_cc.c +++ b/src/libmsc/gsm_04_08_cc.c @@ -55,6 +55,7 @@ #include <osmocom/msc/rtp_stream.h> #include <osmocom/msc/mncc_call.h> #include <osmocom/msc/msc_t.h> +#include <osmocom/msc/sdp_msg.h> #include <osmocom/gsm/gsm48.h> #include <osmocom/gsm/gsm0480.h> @@ -228,15 +229,70 @@ } } +/* Log the MNCC tx and rx events. + * Depending on msg_type, also log whether RTP information is passed on. + * (This is particularly interesting for the doc/sequence_charts/msc_log_to_ladder.py) + */ +static void log_mncc_rx_tx(struct gsm_trans *trans, const char *rx_tx, const union mncc_msg *mncc) +{ + const char *sdp = NULL; + struct sdp_msg sdp_msg = {}; + struct osmo_sockaddr addr = {}; + + if (!log_check_level(DMNCC, LOGL_DEBUG)) + return; + + switch (mncc->msg_type) { + case MNCC_RTP_CREATE: + case MNCC_RTP_CONNECT: + addr = (struct osmo_sockaddr){ .u.sas = mncc->rtp.addr }; + sdp = mncc->rtp.sdp; + break; + + case MNCC_SETUP_IND: + case MNCC_SETUP_REQ: + case MNCC_SETUP_COMPL_IND: + case MNCC_SETUP_COMPL_REQ: + case MNCC_SETUP_RSP: + case MNCC_SETUP_CNF: + case MNCC_CALL_CONF_IND: + case MNCC_CALL_PROC_REQ: + case MNCC_ALERT_IND: + case MNCC_ALERT_REQ: + sdp = mncc->signal.sdp; + break; + + default: + break; + } + + if (sdp && sdp[0] && (sdp_msg_from_sdp_str(&sdp_msg, sdp) == 0)) { + LOG_TRANS_CAT(trans, DMNCC, LOGL_DEBUG, "%s %s (RTP=%s)\n", + rx_tx, + get_mncc_name(mncc->msg_type), + sdp_msg_to_str(&sdp_msg)); + return; + } + + if (osmo_sockaddr_is_any(&addr) == 0) { + LOG_TRANS_CAT(trans, DMNCC, LOGL_DEBUG, "%s %s (RTP=%s)\n", + rx_tx, + get_mncc_name(mncc->msg_type), + osmo_sockaddr_to_str_c(OTC_SELECT, &addr)); + return; + } + + LOG_TRANS_CAT(trans, DMNCC, LOGL_DEBUG, "%s %s\n", rx_tx, get_mncc_name(mncc->msg_type)); +} + static int mncc_recvmsg(struct gsm_network *net, struct gsm_trans *trans, int msg_type, struct gsm_mncc *mncc) { struct msgb *msg; unsigned char *data; - LOG_TRANS_CAT(trans, DMNCC, LOGL_DEBUG, "tx %s\n", get_mncc_name(msg_type)); - mncc->msg_type = msg_type; + log_mncc_rx_tx(trans, "tx", (union mncc_msg *)mncc); msg = msgb_alloc(sizeof(struct gsm_mncc), "MNCC"); if (!msg) @@ -1677,24 +1733,24 @@ mncc_recv_rtp(net, trans, callref, cmd, NULL, 0, 0); } -static int tch_rtp_create(struct gsm_network *net, uint32_t callref) +static int tch_rtp_create(struct gsm_network *net, const struct gsm_mncc_rtp *rtp) { struct gsm_trans *trans; /* Find callref */ - trans = trans_find_by_callref(net, callref); + trans = trans_find_by_callref(net, rtp->callref); if (!trans) { LOG_TRANS_CAT(trans, DMNCC, LOGL_ERROR, "RTP create for non-existing trans\n"); - mncc_recv_rtp_err(net, trans, callref, MNCC_RTP_CREATE); + mncc_recv_rtp_err(net, trans, rtp->callref, MNCC_RTP_CREATE); return -EIO; } log_set_context(LOG_CTX_VLR_SUBSCR, trans->vsub); if (!trans->msc_a) { LOG_TRANS_CAT(trans, DMNCC, LOGL_NOTICE, "RTP create for trans without conn\n"); - mncc_recv_rtp_err(net, trans, callref, MNCC_RTP_CREATE); + mncc_recv_rtp_err(net, trans, rtp->callref, MNCC_RTP_CREATE); return 0; } - LOG_TRANS_CAT(trans, DMNCC, LOGL_DEBUG, "rx %s\n", get_mncc_name(MNCC_RTP_CREATE)); + log_mncc_rx_tx(trans, "rx", (const union mncc_msg*)rtp); /* Assign call (if not done yet) */ return msc_a_try_call_assignment(trans); @@ -1751,7 +1807,6 @@ struct call_leg *cl; struct rtp_stream *rtps; struct osmo_sockaddr_str rtp_addr; - char ipbuf[INET6_ADDRSTRLEN]; /* FIXME: in *rtp we should get the codec information of the remote * leg. We will have to populate trans->conn->rtp.codec_cn with a @@ -1777,9 +1832,7 @@ return -EIO; } - LOG_TRANS_CAT(trans, DMNCC, LOGL_DEBUG, "rx %s %s:%u\n", get_mncc_name(rtp->msg_type), - osmo_sockaddr_ntop((const struct sockaddr*)&rtp->addr, ipbuf), - osmo_sockaddr_port((const struct sockaddr*)&rtp->addr)); + log_mncc_rx_tx(trans, "rx", (const union mncc_msg *)rtp); cl = trans->msc_a->cc.call_leg; rtps = cl ? cl->rtp[RTP_TO_CN] : NULL; @@ -1874,7 +1927,7 @@ disconnect_bridge(net, &msg->bridge, -rc); return rc; case MNCC_RTP_CREATE: - return tch_rtp_create(net, msg->rtp.callref); + return tch_rtp_create(net, &msg->rtp); case MNCC_RTP_CONNECT: return tch_rtp_connect(net, &msg->rtp); case MNCC_RTP_FREE: @@ -1981,7 +2034,7 @@ if (!msc_a) { /* This condition will return before the common logging of the received MNCC message below, so * log it now. */ - LOG_TRANS_CAT(trans, DMNCC, LOGL_DEBUG, "rx %s\n", get_mncc_name(msg->msg_type)); + log_mncc_rx_tx(trans, "rx", msg); /* store setup information until paging succeeds */ memcpy(&trans->cc.msg, data, sizeof(struct gsm_mncc)); @@ -2008,7 +2061,7 @@ log_set_context(LOG_CTX_VLR_SUBSCR, trans->vsub); } - LOG_TRANS_CAT(trans, DMNCC, LOGL_DEBUG, "rx %s\n", get_mncc_name(msg->msg_type)); + log_mncc_rx_tx(trans, "rx", msg); gsm48_start_guard_timer(trans); trans->cc.mncc_initiated = true; @@ -2021,7 +2074,7 @@ struct gsm_mncc rel = { .callref = data->callref, }; - LOG_TRANS(trans, LOGL_DEBUG, "rx %s in paging state\n", get_mncc_name(msg->msg_type)); + LOG_TRANS(trans, LOGL_DEBUG, "still paging\n"); mncc_set_cause(&rel, GSM48_CAUSE_LOC_PRN_S_LU, GSM48_CC_CAUSE_NORM_CALL_CLEAR); if (msg->msg_type == MNCC_REL_REQ) @@ -2031,9 +2084,6 @@ trans->callref = 0; trans_free(trans); return rc; - } else { - LOG_TRANS(trans, LOGL_DEBUG, "rx %s in state %s\n", - get_mncc_name(msg->msg_type), gsm48_cc_state_name(trans->cc.state)); } /* Find function for current state and message */ diff --git a/tests/msc_vlr/msc_vlr_test_call.err b/tests/msc_vlr/msc_vlr_test_call.err index c25c083..e972219 100644 --- a/tests/msc_vlr/msc_vlr_test_call.err +++ b/tests/msc_vlr/msc_vlr_test_call.err @@ -325,7 +325,7 @@ DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Received Event MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: MGW endpoint's RTP address available for the CI RTP_TO_CN: 10.23.23.1:23 (osmux=no:-2) -DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) tx MNCC_RTP_CREATE +DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) tx MNCC_RTP_CREATE (RTP=10.23.23.1:23) MSC --> MNCC: callref 0x80000001: MNCC_RTP_CREATE - MNCC says that's fine MSC <-- MNCC: callref 0x80000001: MNCC_CALL_PROC_REQ @@ -333,7 +333,6 @@ DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) rx MNCC_CALL_PROC_REQ DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) stopping pending guard timer DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) starting guard timer with 180 seconds -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) rx MNCC_CALL_PROC_REQ in state INITIATED DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) new state INITIATED -> MO_CALL_PROC DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Sending DTAP: CC GSM48_MT_CC_CALL_PROC DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: RAN encode: DTAP on UTRAN-Iu @@ -348,7 +347,6 @@ DMNCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) rx MNCC_ALERT_REQ DCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) stopping pending guard timer DCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) starting guard timer with 180 seconds -DCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) rx MNCC_ALERT_REQ in state MO_CALL_PROC DCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) new state MO_CALL_PROC -> CALL_DELIVERED DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Sending DTAP: CC GSM48_MT_CC_ALERTING DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: RAN encode: DTAP on UTRAN-Iu @@ -360,7 +358,6 @@ DMNCC trans(CC:CALL_DELIVERED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) rx MNCC_SETUP_RSP DCC trans(CC:CALL_DELIVERED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) stopping pending guard timer DCC trans(CC:CALL_DELIVERED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) starting guard timer with 180 seconds -DCC trans(CC:CALL_DELIVERED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) rx MNCC_SETUP_RSP in state CALL_DELIVERED DCC trans(CC:CALL_DELIVERED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) starting timer T313 with 30 seconds DCC trans(CC:CALL_DELIVERED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) new state CALL_DELIVERED -> CONNECT_IND DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Sending DTAP: CC GSM48_MT_CC_CONNECT @@ -400,7 +397,6 @@ DMNCC trans(CC:DISCONNECT_IND IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) rx MNCC_REL_REQ DCC trans(CC:DISCONNECT_IND IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) starting guard timer with 180 seconds -DCC trans(CC:DISCONNECT_IND IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) rx MNCC_REL_REQ in state DISCONNECT_IND DCC trans(CC:DISCONNECT_IND IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) starting timer T308 with 10 seconds DCC trans(CC:DISCONNECT_IND IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) new state DISCONNECT_IND -> RELEASE_REQ DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Sending DTAP: CC GSM48_MT_CC_RELEASE @@ -813,7 +809,7 @@ DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: Received Event MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: MGW endpoint's RTP address available for the CI RTP_TO_CN: 10.23.23.1:23 (osmux=no:-2) -DMNCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) tx MNCC_RTP_CREATE +DMNCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) tx MNCC_RTP_CREATE (RTP=10.23.23.1:23) MSC --> MNCC: callref 0x423: MNCC_RTP_CREATE - Total time passed: 1.000023 s MSC <--UTRAN-Iu-- MS: GSM48_MT_CC_ALERTING @@ -842,7 +838,6 @@ DMNCC trans(CC:CONNECT_REQUEST IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) rx MNCC_SETUP_COMPL_REQ DCC trans(CC:CONNECT_REQUEST IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) starting guard timer with 180 seconds -DCC trans(CC:CONNECT_REQUEST IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) rx MNCC_SETUP_COMPL_REQ in state CONNECT_REQUEST DCC trans(CC:CONNECT_REQUEST IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) new state CONNECT_REQUEST -> ACTIVE DCC trans(CC:ACTIVE IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) stopping pending guard timer DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: Sending DTAP: CC GSM48_MT_CC_CONNECT_ACK @@ -870,7 +865,6 @@ DMNCC trans(CC:DISCONNECT_IND IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) rx MNCC_REL_REQ DCC trans(CC:DISCONNECT_IND IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) starting guard timer with 180 seconds -DCC trans(CC:DISCONNECT_IND IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) rx MNCC_REL_REQ in state DISCONNECT_IND DCC trans(CC:DISCONNECT_IND IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) starting timer T308 with 10 seconds DCC trans(CC:DISCONNECT_IND IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) new state DISCONNECT_IND -> RELEASE_REQ DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: Sending DTAP: CC GSM48_MT_CC_RELEASE @@ -1283,7 +1277,7 @@ DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: Received Event MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: MGW endpoint's RTP address available for the CI RTP_TO_CN: 10.23.23.1:23 (osmux=no:-2) -DMNCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) tx MNCC_RTP_CREATE +DMNCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) tx MNCC_RTP_CREATE (RTP=10.23.23.1:23) MSC --> MNCC: callref 0x423: MNCC_RTP_CREATE - Total time passed: 1.000023 s MSC <--UTRAN-Iu-- MS: GSM48_MT_CC_ALERTING @@ -1692,7 +1686,7 @@ DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Received Event MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: MGW endpoint's RTP address available for the CI RTP_TO_CN: 10.23.23.1:23 (osmux=no:-2) -DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) tx MNCC_RTP_CREATE +DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) tx MNCC_RTP_CREATE (RTP=10.23.23.1:23) MSC --> MNCC: callref 0x80000002: MNCC_RTP_CREATE - MNCC says that's fine MSC <-- MNCC: callref 0x80000002: MNCC_CALL_PROC_REQ @@ -1700,7 +1694,6 @@ DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) rx MNCC_CALL_PROC_REQ DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) stopping pending guard timer DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) starting guard timer with 180 seconds -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) rx MNCC_CALL_PROC_REQ in state INITIATED DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) new state INITIATED -> MO_CALL_PROC DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Sending DTAP: CC GSM48_MT_CC_CALL_PROC DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: RAN encode: DTAP on UTRAN-Iu @@ -1714,7 +1707,6 @@ DMNCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) rx MNCC_REL_REQ DCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) stopping pending guard timer DCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) starting guard timer with 180 seconds -DCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) rx MNCC_REL_REQ in state MO_CALL_PROC DCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) starting timer T308 with 10 seconds DCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) new state MO_CALL_PROC -> RELEASE_REQ DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Sending DTAP: CC GSM48_MT_CC_RELEASE @@ -2120,7 +2112,7 @@ DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Received Event MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: MGW endpoint's RTP address available for the CI RTP_TO_CN: 10.23.23.1:23 (osmux=no:-2) -DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) tx MNCC_RTP_CREATE +DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) tx MNCC_RTP_CREATE (RTP=10.23.23.1:23) MSC --> MNCC: callref 0x80000003: MNCC_RTP_CREATE - MNCC says that's fine MSC <-- MNCC: callref 0x80000003: MNCC_CALL_PROC_REQ @@ -2128,7 +2120,6 @@ DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) rx MNCC_CALL_PROC_REQ DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) stopping pending guard timer DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) starting guard timer with 180 seconds -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) rx MNCC_CALL_PROC_REQ in state INITIATED DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) new state INITIATED -> MO_CALL_PROC DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Sending DTAP: CC GSM48_MT_CC_CALL_PROC DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: RAN encode: DTAP on UTRAN-Iu @@ -2142,7 +2133,6 @@ DMNCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) rx MNCC_REL_REQ DCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) stopping pending guard timer DCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) starting guard timer with 180 seconds -DCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) rx MNCC_REL_REQ in state MO_CALL_PROC DCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) starting timer T308 with 10 seconds DCC trans(CC:MO_CALL_PROC IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) new state MO_CALL_PROC -> RELEASE_REQ DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Sending DTAP: CC GSM48_MT_CC_RELEASE -- To view, visit https://gerrit.osmocom.org/c/osmo-msc/+/31743 To unsubscribe, or for help writing mail filters, visit https://gerrit.osmocom.org/settings Gerrit-Project: osmo-msc Gerrit-Branch: master Gerrit-Change-Id: I4b916cb482ed441b508c6295de211a21c49cd5c1 Gerrit-Change-Number: 31743 Gerrit-PatchSet: 1 Gerrit-Owner: neels <nhofmeyr(a)sysmocom.de> Gerrit-MessageType: newchange

1 0

[S] Change in libosmo-pfcp[master]: build: fix linking gen__pfcp_ies_auto to use build-tree libosmo-gtlv
by neels 08 Mar '23

08 Mar '23

neels has uploaded this change for review. ( https://gerrit.osmocom.org/c/libosmo-pfcp/+/31741 ) Change subject: build: fix linking gen__pfcp_ies_auto to use build-tree libosmo-gtlv ...................................................................... build: fix linking gen__pfcp_ies_auto to use build-tree libosmo-gtlv When a locally built lib is not the first in LDFLAGS, libtool prefers a system installed lib over the locally built one. By using LDADD for gen__pfcp_ies_auto, the local lib gets appended, not listed first. Change LDADD to LDFLAGS to make sure libtool is using the locally built libosmo-gtlv for gen__pfcp_ies_auto. Related: OS#5942 Change-Id: I2e92238b214d8e79bab1095d6093139bad05bc66 --- M src/libosmo-pfcp/Makefile.am 1 file changed, 18 insertions(+), 1 deletion(-) git pull ssh://gerrit.osmocom.org:29418/libosmo-pfcp refs/changes/41/31741/1 diff --git a/src/libosmo-pfcp/Makefile.am b/src/libosmo-pfcp/Makefile.am index 578ac0b..5d53923 100644 --- a/src/libosmo-pfcp/Makefile.am +++ b/src/libosmo-pfcp/Makefile.am @@ -65,7 +65,7 @@ gen__pfcp_ies_auto.c \ $(NULL) -gen__pfcp_ies_auto_LDADD = \ +gen__pfcp_ies_auto_LDFLAGS = \ $(top_builddir)/src/libosmo-gtlv/libosmo-gtlv.la \ $(LIBOSMOCORE_LIBS) \ $(COVERAGE_LDFLAGS) \ -- To view, visit https://gerrit.osmocom.org/c/libosmo-pfcp/+/31741 To unsubscribe, or for help writing mail filters, visit https://gerrit.osmocom.org/settings Gerrit-Project: libosmo-pfcp Gerrit-Branch: master Gerrit-Change-Id: I2e92238b214d8e79bab1095d6093139bad05bc66 Gerrit-Change-Number: 31741 Gerrit-PatchSet: 1 Gerrit-Owner: neels <nhofmeyr(a)sysmocom.de> Gerrit-MessageType: newchange

1 0

[L] Change in osmo-msc[master]: do CN CRCX first
by neels 07 Mar '23

07 Mar '23

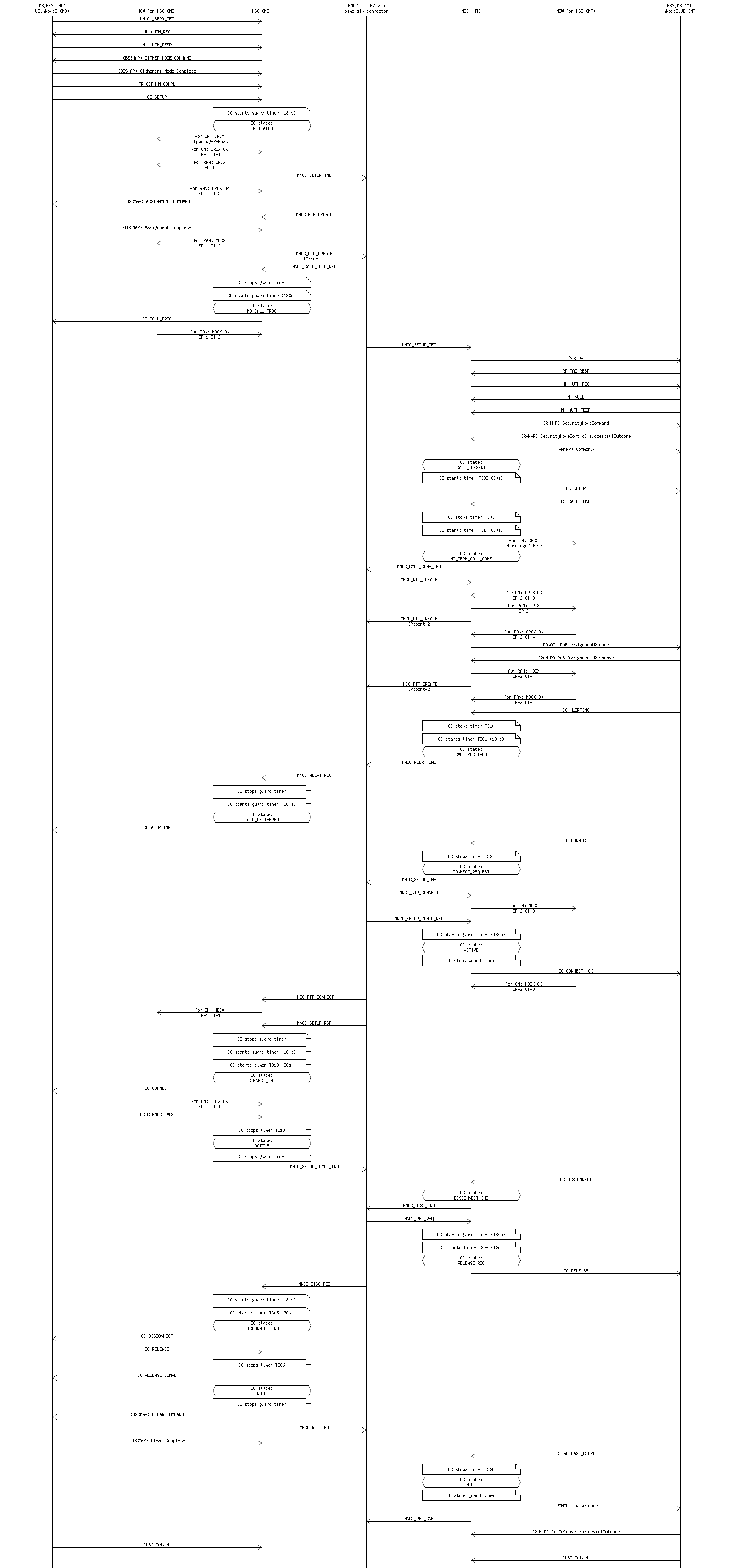

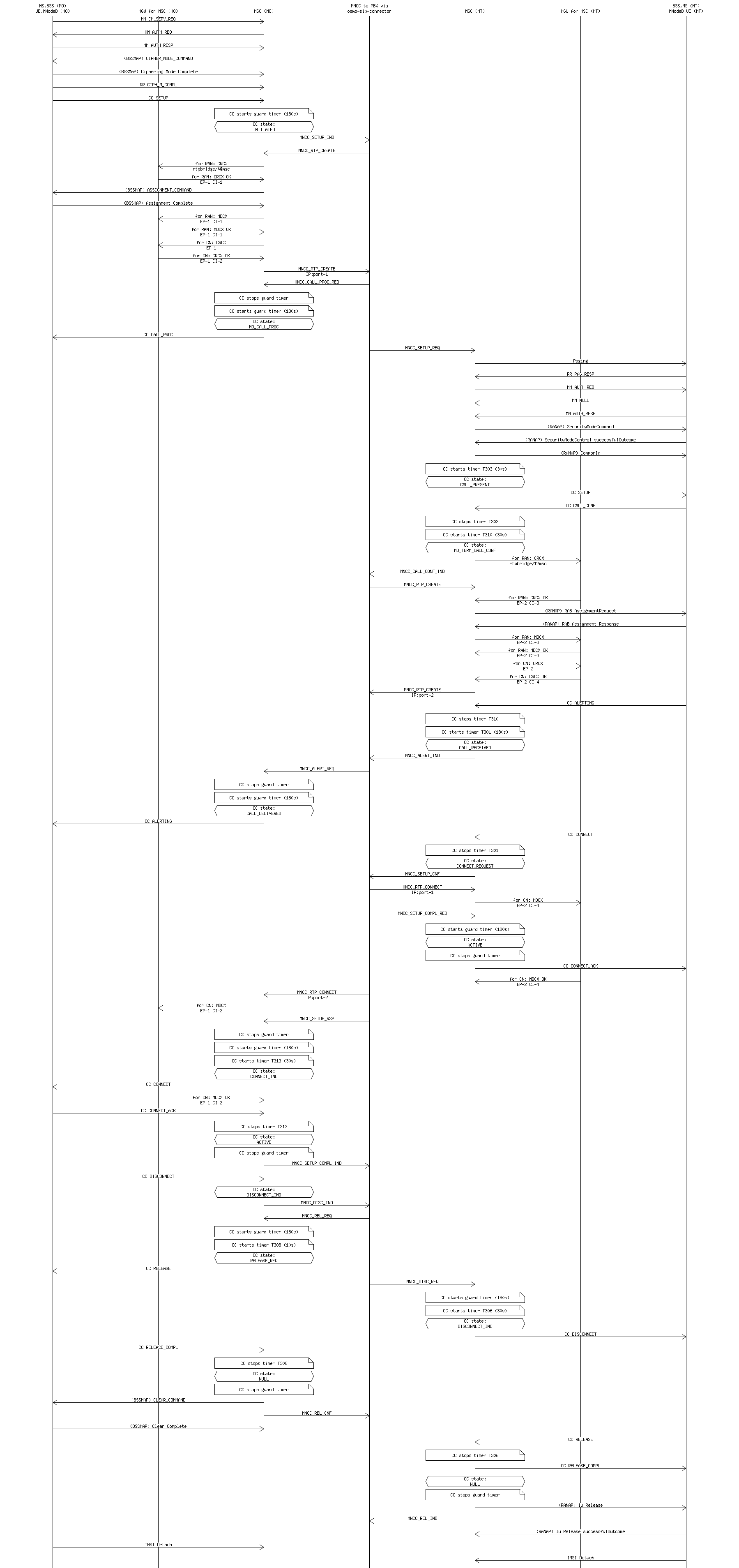

neels has posted comments on this change. ( https://gerrit.osmocom.org/c/osmo-msc/+/31740 ) Change subject: do CN CRCX first ...................................................................... Patch Set 1: (2 comments) Commit Message: https://gerrit.osmocom.org/c/osmo-msc/+/31740/comment/ff9b5b10_eb74cb20 PS1, Line 13: Update the voice call sequence chart to show the effects. for convenience, renderings of the voice call charts before and after this patch: https://people.osmocom.org/neels/ohGhe5ah/voice_call_full.before.png https://people.osmocom.org/neels/ohGhe5ah/voice_call_full.after.png note how the CN CRCX happens first, before sending the first RTP related MNCC, so that this first MNCC can already contain the correct RTP port of the MGW towards CN. On the MO side we see the CN CRCX OK establishing the RTP port before MNCC_SETUP_IND towards MNCC is sent. On the MT side we see the CN CRCX OK happens before MNCC_RTP_CREATE goes back to the MNCC. It also shows that the MNCC_CALL_CONF_IND happens before that CRCX OK, because the CALL_CONF_IND does not yet contain RTP or codecs information. These charts were made (a long time ago) with some script of mine that automatically scrapes the osmo-msc log to create an .msc ladder diagram. (maybe i should run this again now, since the patches have changed a bit. I don't expect any difference, but I guess I should confirm that.) File src/libmsc/gsm_04_08_cc.c: https://gerrit.osmocom.org/c/osmo-msc/+/31740/comment/82047761_1ffb3d9f PS1, Line 901: /* Directly ack with MNCC_CALL_CONF_IND, not yet containing SDP or RTP IP:port information. */ (here is that MT MNCC_CALL_CONF_IND that has no RTP nor SDP yet) -- To view, visit https://gerrit.osmocom.org/c/osmo-msc/+/31740 To unsubscribe, or for help writing mail filters, visit https://gerrit.osmocom.org/settings Gerrit-Project: osmo-msc Gerrit-Branch: master Gerrit-Change-Id: Ie433db1ba0c46d4b97538a969233c155cefac21c Gerrit-Change-Number: 31740 Gerrit-PatchSet: 1 Gerrit-Owner: neels <nhofmeyr(a)sysmocom.de> Gerrit-Reviewer: Jenkins Builder Gerrit-Comment-Date: Tue, 07 Mar 2023 23:10:32 +0000 Gerrit-HasComments: Yes Gerrit-Has-Labels: No Gerrit-MessageType: comment

1 0

[S] Change in osmo-msc[master]: [codecs filter] use codecs filter on crcx ok
by neels 07 Mar '23

07 Mar '23

neels has posted comments on this change. ( https://gerrit.osmocom.org/c/osmo-msc/+/31700 ) Change subject: [codecs filter] use codecs filter on crcx ok ...................................................................... Patch Set 4: (1 comment) Patchset: PS3: > something went wrong here, i must have accidentally squashed "do CN CRCX first" into its preceding p […] phew, I'm relieved that it was easy to fix. no idea how i messed that up, the reflog didn't show any fixup or squash, only suddenly the super pivotal and important "do CN CRCX first" disappears from the logs. Now it's separate again. -- To view, visit https://gerrit.osmocom.org/c/osmo-msc/+/31700 To unsubscribe, or for help writing mail filters, visit https://gerrit.osmocom.org/settings Gerrit-Project: osmo-msc Gerrit-Branch: master Gerrit-Change-Id: I03753df567d1dc24852e6fbb681fbba81d2a545d Gerrit-Change-Number: 31700 Gerrit-PatchSet: 4 Gerrit-Owner: neels <nhofmeyr(a)sysmocom.de> Gerrit-Reviewer: Jenkins Builder Gerrit-Reviewer: neels <nhofmeyr(a)sysmocom.de> Gerrit-Reviewer: pespin <pespin(a)sysmocom.de> Gerrit-Comment-Date: Tue, 07 Mar 2023 22:54:35 +0000 Gerrit-HasComments: Yes Gerrit-Has-Labels: No Comment-In-Reply-To: neels <nhofmeyr(a)sysmocom.de> Gerrit-MessageType: comment

1 0

[L] Change in osmo-msc[master]: do CN CRCX first
by neels 07 Mar '23

07 Mar '23

neels has uploaded this change for review. ( https://gerrit.osmocom.org/c/osmo-msc/+/31740 ) Change subject: do CN CRCX first ...................................................................... do CN CRCX first In order to send the MSC's RTP endpoint IP address+port in the inital SDP, move the MGCP CRCX up to an earlier point in the sequence of establishing a voice call. Update the voice call sequence chart to show the effects. Though the semantic change is rather simple, the patch is rather huge -- things have to happen in a different order, and async waits have to happen at different times. The new codec filter helps to carry codec resolution information across the newly arranged code paths. Related: SYS#5066 Change-Id: Ie433db1ba0c46d4b97538a969233c155cefac21c --- M doc/sequence_charts/voice_call_full.msc M include/osmocom/msc/gsm_04_08.h M include/osmocom/msc/msc_a.h M src/libmsc/gsm_04_08_cc.c M src/libmsc/msc_a.c M tests/msc_vlr/msc_vlr_test_call.c M tests/msc_vlr/msc_vlr_test_call.err 7 files changed, 490 insertions(+), 260 deletions(-) git pull ssh://gerrit.osmocom.org:29418/osmo-msc refs/changes/40/31740/1 diff --git a/doc/sequence_charts/voice_call_full.msc b/doc/sequence_charts/voice_call_full.msc index 75fcef2..7a791a5 100644 --- a/doc/sequence_charts/voice_call_full.msc +++ b/doc/sequence_charts/voice_call_full.msc @@ -11,22 +11,22 @@ moms =>> momsc [label="CC SETUP"]; momsc note momsc [label="CC starts guard timer (180s)"]; momsc abox momsc [label="CC state:\nINITIATED"]; +momgw <<= momsc [label="for CN: CRCX\nrtpbridge/*@msc"]; +momgw =>> momsc [label="for CN: CRCX OK\nEP-1 CI-1"]; +momgw <<= momsc [label="for RAN: CRCX\nEP-1"]; momsc =>> sip [label="MNCC_SETUP_IND"]; -momsc <<= sip [label="MNCC_RTP_CREATE"]; -momgw <<= momsc [label="for RAN: CRCX\nrtpbridge/*@msc"]; -momgw =>> momsc [label="for RAN: CRCX OK\nEP-1 CI-1"]; +momgw =>> momsc [label="for RAN: CRCX OK\nEP-1 CI-2"]; moms <<= momsc [label="(BSSMAP) ASSIGNMENT_COMMAND"]; +momsc <<= sip [label="MNCC_RTP_CREATE"]; moms =>> momsc [label="(BSSMAP) Assignment Complete"]; -momgw <<= momsc [label="for RAN: MDCX\nEP-1 CI-1"]; -momgw =>> momsc [label="for RAN: MDCX OK\nEP-1 CI-1"]; -momgw <<= momsc [label="for CN: CRCX\nEP-1"]; -momgw =>> momsc [label="for CN: CRCX OK\nEP-1 CI-2"]; +momgw <<= momsc [label="for RAN: MDCX\nEP-1 CI-2"]; momsc =>> sip [label="MNCC_RTP_CREATE\nIP:port-1"]; momsc <<= sip [label="MNCC_CALL_PROC_REQ"]; momsc note momsc [label="CC stops guard timer"]; momsc note momsc [label="CC starts guard timer (180s)"]; momsc abox momsc [label="CC state:\nMO_CALL_PROC"]; moms <<= momsc [label="CC CALL_PROC"]; +momgw =>> momsc [label="for RAN: MDCX OK\nEP-1 CI-2"]; mtmsc <<= sip [label="MNCC_SETUP_REQ"]; mtms <<= mtmsc [label="Paging"]; mtms =>> mtmsc [label="RR PAG_RESP"]; @@ -36,24 +36,25 @@ mtms <<= mtmsc [label="(RANAP) SecurityModeCommand"]; mtms =>> mtmsc [label="(RANAP) SecurityModeControl successfulOutcome"]; mtms <<= mtmsc [label="(RANAP) CommonId"]; -mtmsc note mtmsc [label="CC starts timer T303 (30s)"]; mtmsc abox mtmsc [label="CC state:\nCALL_PRESENT"]; +mtmsc note mtmsc [label="CC starts timer T303 (30s)"]; mtms <<= mtmsc [label="CC SETUP"]; mtms =>> mtmsc [label="CC CALL_CONF"]; mtmsc note mtmsc [label="CC stops timer T303"]; mtmsc note mtmsc [label="CC starts timer T310 (30s)"]; +mtmgw <<= mtmsc [label="for CN: CRCX\nrtpbridge/*@msc"]; mtmsc abox mtmsc [label="CC state:\nMO_TERM_CALL_CONF"]; -mtmgw <<= mtmsc [label="for RAN: CRCX\nrtpbridge/*@msc"]; mtmsc =>> sip [label="MNCC_CALL_CONF_IND"]; mtmsc <<= sip [label="MNCC_RTP_CREATE"]; -mtmgw =>> mtmsc [label="for RAN: CRCX OK\nEP-2 CI-3"]; +mtmgw =>> mtmsc [label="for CN: CRCX OK\nEP-2 CI-3"]; +mtmgw <<= mtmsc [label="for RAN: CRCX\nEP-2"]; +mtmsc =>> sip [label="MNCC_RTP_CREATE\nIP:port-2"]; +mtmgw =>> mtmsc [label="for RAN: CRCX OK\nEP-2 CI-4"]; mtms <<= mtmsc [label="(RANAP) RAB AssignmentRequest"]; mtms =>> mtmsc [label="(RANAP) RAB Assignment Response"]; -mtmgw <<= mtmsc [label="for RAN: MDCX\nEP-2 CI-3"]; -mtmgw =>> mtmsc [label="for RAN: MDCX OK\nEP-2 CI-3"]; -mtmgw <<= mtmsc [label="for CN: CRCX\nEP-2"]; -mtmgw =>> mtmsc [label="for CN: CRCX OK\nEP-2 CI-4"]; +mtmgw <<= mtmsc [label="for RAN: MDCX\nEP-2 CI-4"]; mtmsc =>> sip [label="MNCC_RTP_CREATE\nIP:port-2"]; +mtmgw =>> mtmsc [label="for RAN: MDCX OK\nEP-2 CI-4"]; mtms =>> mtmsc [label="CC ALERTING"]; mtmsc note mtmsc [label="CC stops timer T310"]; mtmsc note mtmsc [label="CC starts timer T301 (180s)"]; @@ -68,55 +69,55 @@ mtmsc note mtmsc [label="CC stops timer T301"]; mtmsc abox mtmsc [label="CC state:\nCONNECT_REQUEST"]; mtmsc =>> sip [label="MNCC_SETUP_CNF"]; -mtmsc <<= sip [label="MNCC_RTP_CONNECT\nIP:port-1"]; -mtmgw <<= mtmsc [label="for CN: MDCX\nEP-2 CI-4"]; +mtmsc <<= sip [label="MNCC_RTP_CONNECT"]; +mtmgw <<= mtmsc [label="for CN: MDCX\nEP-2 CI-3"]; mtmsc <<= sip [label="MNCC_SETUP_COMPL_REQ"]; mtmsc note mtmsc [label="CC starts guard timer (180s)"]; mtmsc abox mtmsc [label="CC state:\nACTIVE"]; mtmsc note mtmsc [label="CC stops guard timer"]; mtms <<= mtmsc [label="CC CONNECT_ACK"]; -mtmgw =>> mtmsc [label="for CN: MDCX OK\nEP-2 CI-4"]; -momsc <<= sip [label="MNCC_RTP_CONNECT\nIP:port-2"]; -momgw <<= momsc [label="for CN: MDCX\nEP-1 CI-2"]; +mtmgw =>> mtmsc [label="for CN: MDCX OK\nEP-2 CI-3"]; +momsc <<= sip [label="MNCC_RTP_CONNECT"]; +momgw <<= momsc [label="for CN: MDCX\nEP-1 CI-1"]; momsc <<= sip [label="MNCC_SETUP_RSP"]; momsc note momsc [label="CC stops guard timer"]; momsc note momsc [label="CC starts guard timer (180s)"]; momsc note momsc [label="CC starts timer T313 (30s)"]; momsc abox momsc [label="CC state:\nCONNECT_IND"]; moms <<= momsc [label="CC CONNECT"]; -momgw =>> momsc [label="for CN: MDCX OK\nEP-1 CI-2"]; +momgw =>> momsc [label="for CN: MDCX OK\nEP-1 CI-1"]; moms =>> momsc [label="CC CONNECT_ACK"]; momsc note momsc [label="CC stops timer T313"]; momsc abox momsc [label="CC state:\nACTIVE"]; momsc note momsc [label="CC stops guard timer"]; momsc =>> sip [label="MNCC_SETUP_COMPL_IND"]; -moms =>> momsc [label="CC DISCONNECT"]; -momsc abox momsc [label="CC state:\nDISCONNECT_IND"]; -momsc =>> sip [label="MNCC_DISC_IND"]; -momsc <<= sip [label="MNCC_REL_REQ"]; -momsc note momsc [label="CC starts guard timer (180s)"]; -momsc note momsc [label="CC starts timer T308 (10s)"]; -momsc abox momsc [label="CC state:\nRELEASE_REQ"]; -moms <<= momsc [label="CC RELEASE"]; -mtmsc <<= sip [label="MNCC_DISC_REQ"]; -mtmsc note mtmsc [label="CC starts guard timer (180s)"]; -mtmsc note mtmsc [label="CC starts timer T306 (30s)"]; +mtms =>> mtmsc [label="CC DISCONNECT"]; mtmsc abox mtmsc [label="CC state:\nDISCONNECT_IND"]; -mtms <<= mtmsc [label="CC DISCONNECT"]; -moms =>> momsc [label="CC RELEASE_COMPL"]; -momsc note momsc [label="CC stops timer T308"]; +mtmsc =>> sip [label="MNCC_DISC_IND"]; +mtmsc <<= sip [label="MNCC_REL_REQ"]; +mtmsc note mtmsc [label="CC starts guard timer (180s)"]; +mtmsc note mtmsc [label="CC starts timer T308 (10s)"]; +mtmsc abox mtmsc [label="CC state:\nRELEASE_REQ"]; +mtms <<= mtmsc [label="CC RELEASE"]; +momsc <<= sip [label="MNCC_DISC_REQ"]; +momsc note momsc [label="CC starts guard timer (180s)"]; +momsc note momsc [label="CC starts timer T306 (30s)"]; +momsc abox momsc [label="CC state:\nDISCONNECT_IND"]; +moms <<= momsc [label="CC DISCONNECT"]; +moms =>> momsc [label="CC RELEASE"]; +momsc note momsc [label="CC stops timer T306"]; +moms <<= momsc [label="CC RELEASE_COMPL"]; momsc abox momsc [label="CC state:\nNULL"]; momsc note momsc [label="CC stops guard timer"]; moms <<= momsc [label="(BSSMAP) CLEAR_COMMAND"]; -momsc =>> sip [label="MNCC_REL_CNF"]; +momsc =>> sip [label="MNCC_REL_IND"]; moms =>> momsc [label="(BSSMAP) Clear Complete"]; -mtms =>> mtmsc [label="CC RELEASE"]; -mtmsc note mtmsc [label="CC stops timer T306"]; -mtms <<= mtmsc [label="CC RELEASE_COMPL"]; +mtms =>> mtmsc [label="CC RELEASE_COMPL"]; +mtmsc note mtmsc [label="CC stops timer T308"]; mtmsc abox mtmsc [label="CC state:\nNULL"]; mtmsc note mtmsc [label="CC stops guard timer"]; mtms <<= mtmsc [label="(RANAP) Iu Release"]; -mtmsc =>> sip [label="MNCC_REL_IND"]; +mtmsc =>> sip [label="MNCC_REL_CNF"]; mtms =>> mtmsc [label="(RANAP) Iu Release successfulOutcome"]; moms =>> momsc [label="IMSI Detach"]; mtms =>> mtmsc [label="IMSI Detach"]; diff --git a/include/osmocom/msc/gsm_04_08.h b/include/osmocom/msc/gsm_04_08.h index bfc8027..cd5074e 100644 --- a/include/osmocom/msc/gsm_04_08.h +++ b/include/osmocom/msc/gsm_04_08.h @@ -45,6 +45,11 @@ int gsm48_send_rr_ass_cmd(struct gsm_lchan *dest_lchan, struct gsm_lchan *lchan, uint8_t power_class); int gsm48_send_ho_cmd(struct gsm_lchan *old_lchan, struct gsm_lchan *new_lchan, uint8_t power_command, uint8_t ho_ref); +void gsm48_cc_rx_setup_cn_local_rtp_port_known(struct gsm_trans *trans); +void gsm48_cc_rx_call_conf_cn_local_rtp_port_known(struct gsm_trans *trans); +int cc_on_cn_local_rtp_port_known(struct gsm_trans *trans); +int cc_on_assignment_done(struct gsm_trans *trans); + int mncc_tx_to_cc(struct gsm_network *net, void *arg); /* convert a ASCII phone number to call-control BCD */ diff --git a/include/osmocom/msc/msc_a.h b/include/osmocom/msc/msc_a.h index 18eb76c..3b11155 100644 --- a/include/osmocom/msc/msc_a.h +++ b/include/osmocom/msc/msc_a.h @@ -208,6 +208,7 @@ bool msc_a_is_accepted(const struct msc_a *msc_a); bool msc_a_is_establishing_auth_ciph(const struct msc_a *msc_a); +int msc_a_ensure_cn_local_rtp(struct msc_a *msc_a, struct gsm_trans *cc_trans); int msc_a_try_call_assignment(struct gsm_trans *cc_trans); const char *msc_a_cm_service_type_to_use(enum osmo_cm_service_type cm_service_type); diff --git a/src/libmsc/gsm_04_08_cc.c b/src/libmsc/gsm_04_08_cc.c index 0d238b3..6ae5e54 100644 --- a/src/libmsc/gsm_04_08_cc.c +++ b/src/libmsc/gsm_04_08_cc.c @@ -515,8 +515,6 @@ unsigned int payload_len = msgb_l3len(msg) - sizeof(*gh); struct tlv_parsed tp; struct gsm_mncc setup; - struct sdp_msg *sdp; - int rc; gsm48_start_guard_timer(trans); @@ -541,6 +539,8 @@ msgb_free(gcr_msg); } + OSMO_ASSERT(trans->msc_a); + tlv_parse(&tp, &gsm48_att_tlvdef, gh->data, payload_len, 0, 0); /* emergency setup is identified by msg_type */ if (msg_type == GSM48_MT_CC_EMERG_SETUP) { @@ -610,8 +610,6 @@ TLVP_VAL(&tp, GSM48_IE_CC_CAP)-1); } - new_cc_state(trans, GSM_CSTATE_INITIATED); - /* MO call leg starting, gather all codec information so far known: */ codec_filter_init(&trans->cc.codecs); codec_filter_set_ran(&trans->cc.codecs, trans->msc_a->c.ran->type); @@ -626,9 +624,55 @@ rate_ctr_inc(rate_ctr_group_get_ctr(trans->net->msc_ctrs, MSC_CTR_CALL_MO_SETUP)); - /* FUTURE: so far this is composing SDP although the RTP address is not established yet (sending 0.0.0.0:0). - * Subsequent patch 'do CN CRCX first' (Ie433db1ba0c46d4b97538a969233c155cefac21c) changes the ordering so that - * the CN CRCX is completed before dispatching CC SETUP to remote, so that a valid RTP address is set. */ + new_cc_state(trans, GSM_CSTATE_INITIATED); + + /* To complete the MNCC_SETUP_IND, we need to provide an RTP address and port. First instruct the MGW to create + * a CN-side RTP conn, and continue with MNCC_SETUP_IND once that is done. Leave trans.cc in GSM_CSTATE_NULL and + * note down the msg_type to indicate that we indeed composed an MNCC_SETUP_IND for later. */ + setup.msg_type = MNCC_SETUP_IND; + trans->cc.msg = setup; + return msc_a_try_call_assignment(trans); + /* continue in gsm48_cc_rx_setup_cn_local_rtp_port_known() */ +} + +/* Callback for MNCC_SETUP_IND waiting for the core network RTP port to be established by the MGW (via msc_a) */ +void gsm48_cc_rx_setup_cn_local_rtp_port_known(struct gsm_trans *trans) +{ + struct msc_a *msc_a = trans->msc_a; + struct gsm_mncc setup = trans->cc.msg; + struct osmo_sockaddr_str *rtp_cn_local; + struct sdp_msg *sdp; + int rc; + + if (trans->cc.state != GSM_CSTATE_INITIATED + || setup.msg_type != MNCC_SETUP_IND) { + LOG_TRANS(trans, LOGL_ERROR, + "Unexpected CC state. Expected GSM_CSTATE_INITIATED and a buffered MNCC_SETUP_IND message," + " found CC state %d and msg_type %s\n", + trans->cc.state, get_mncc_name(setup.msg_type)); + trans->callref = 0; + trans_free(trans); + return; + } + + if (!msc_a) { + LOG_TRANS(trans, LOGL_ERROR, "No connection for CC trans\n"); + trans->callref = 0; + trans_free(trans); + return; + } + + /* 'setup' above has taken the value of trans->cc.msg, we can now clear that. */ + trans->cc.msg = (struct gsm_mncc){}; + + /* Insert the CN side RTP port now available into SDP and compose SDP string */ + rtp_cn_local = call_leg_local_ip(msc_a->cc.call_leg, RTP_TO_CN); + if (!osmo_sockaddr_str_is_nonzero(rtp_cn_local)) { + LOG_TRANS(trans, LOGL_ERROR, "Cannot compose SDP for MNCC_SETUP_IND: no RTP set up for the CN side\n"); + trans_free(trans); + return; + } + codec_filter_set_local_rtp(&trans->cc.codecs, rtp_cn_local); codec_filter_run(&trans->cc.codecs); sdp = trans->cc.codecs.result.audio_codecs.count ? &trans->cc.codecs.result : NULL; @@ -636,16 +680,11 @@ if (rc >= sizeof(setup.sdp)) { LOG_TRANS(trans, LOGL_ERROR, "MNCC_SETUP_IND: SDP too long (%d > %zu bytes)\n", rc, sizeof(setup.sdp)); trans_free(trans); - return -EINVAL; + return; } /* indicate setup to MNCC */ mncc_recvmsg(trans->net, trans, MNCC_SETUP_IND, &setup); - - /* MNCC code will modify the channel asynchronously, we should - * ipaccess-bind only after the modification has been made to the - * lchan->tch_mode */ - return 0; } static void rx_mncc_sdp(struct gsm_trans *trans, uint32_t mncc_msg_type, const char *sdp) @@ -851,8 +890,6 @@ /* IMSI of called subscriber */ OSMO_STRLCPY_ARRAY(call_conf.imsi, trans->vsub->imsi); - new_cc_state(trans, GSM_CSTATE_MO_TERM_CALL_CONF); - /* Assign call (if not done yet) */ rc = msc_a_try_call_assignment(trans); @@ -861,8 +898,48 @@ if (rc) return rc; - return mncc_recvmsg(trans->net, trans, MNCC_CALL_CONF_IND, - &call_conf); + /* Directly ack with MNCC_CALL_CONF_IND, not yet containing SDP or RTP IP:port information. */ + new_cc_state(trans, GSM_CSTATE_MO_TERM_CALL_CONF); + return mncc_recvmsg(trans->net, trans, MNCC_CALL_CONF_IND, &call_conf); +} + +static int mncc_recv_rtp(struct gsm_network *net, struct gsm_trans *trans, uint32_t callref, + int cmd, struct osmo_sockaddr_str *rtp_addr, uint32_t payload_type, + uint32_t payload_msg_type, const struct sdp_msg *sdp); + +static int gsm48_cc_mt_rtp_port_and_codec_known(struct gsm_trans *trans) +{ + struct msc_a *msc_a = trans->msc_a; + struct osmo_sockaddr_str *rtp_cn_local; + struct gsm_mncc_rtp; + + if (!msc_a) { + LOG_TRANS(trans, LOGL_ERROR, "No connection for CC trans\n"); + trans->callref = 0; + trans_free(trans); + return -EINVAL; + } + + /* Insert the CN side RTP port now available into SDP */ + rtp_cn_local = call_leg_local_ip(msc_a->cc.call_leg, RTP_TO_CN); + if (!rtp_cn_local) { + LOG_TRANS(trans, LOGL_ERROR, "Cannot compose SDP for MNCC_RTP_CREATE: no RTP set up for the CN side\n"); + trans_free(trans); + return -EINVAL; + } + codec_filter_set_local_rtp(&trans->cc.codecs, rtp_cn_local); + + codec_filter_run(&trans->cc.codecs); + LOG_TRANS(trans, LOGL_DEBUG, "codecs: %s\n", codec_filter_to_str(&trans->cc.codecs)); + + /* If we haven't completed Assignment yet, don't sent MNCC_RTP_CREATE */ + if (!sdp_audio_codec_is_set(&trans->cc.codecs.assignment)) { + LOG_TRANS(trans, LOGL_DEBUG, "no codec confirmed by Assignment yet\n"); + return 0; + } + + return mncc_recv_rtp(msc_a_net(msc_a), trans, trans->callref, MNCC_RTP_CREATE, rtp_cn_local, 0, 0, + &trans->cc.codecs.result); } static int gsm48_cc_tx_call_proc_and_assign(struct gsm_trans *trans, void *arg) @@ -1844,6 +1921,62 @@ return msc_a_try_call_assignment(trans); } +int cc_on_cn_local_rtp_port_known(struct gsm_trans *cc_trans) +{ + /* Depending on MO or MT call, dispatch the event differently */ + switch (cc_trans->cc.state) { + case GSM_CSTATE_INITIATED: + if (cc_trans->cc.msg.msg_type != MNCC_SETUP_IND) { + LOG_TRANS(cc_trans, LOGL_ERROR, "Assuming MO call, expected MNCC_SETUP_IND to be prepared\n"); + return -EINVAL; + } + /* This is the MO call leg, waiting for a CN RTP be able to send initial MNCC_SETUP_IND. */ + gsm48_cc_rx_setup_cn_local_rtp_port_known(cc_trans); + return 0; + + case GSM_CSTATE_MO_TERM_CALL_CONF: + /* This is the MT call leg, waiting for a CN RTP to be able to send MNCC_CALL_CONF_IND. */ + return gsm48_cc_mt_rtp_port_and_codec_known(cc_trans); + + default: + LOG_TRANS(cc_trans, LOGL_ERROR, "CN RTP address available, but in unexpected state %d\n", + cc_trans->cc.state); + return -EINVAL; + } +} + +int cc_on_assignment_done(struct gsm_trans *trans) +{ + struct msc_a *msc_a = trans->msc_a; + + switch (trans->cc.state) { + case GSM_CSTATE_INITIATED: + case GSM_CSTATE_MO_CALL_PROC: + /* MO call */ + break; + + case GSM_CSTATE_CALL_RECEIVED: + case GSM_CSTATE_MO_TERM_CALL_CONF: + /* MT call */ + break; + + case GSM_CSTATE_ACTIVE: + /* already active. MNCC finished before Abis completed the Assignment. */ + break; + + default: + LOG_TRANS(trans, LOGL_ERROR, "Assignment done in unexpected CC state: %d\n", trans->cc.state); + return -EINVAL; + } + + if (!call_leg_local_ip(msc_a->cc.call_leg, RTP_TO_CN)) { + LOG_TRANS(trans, LOGL_DEBUG, + "Assignment complete, but still waiting for the CRCX OK on the CN side RTP\n"); + return 0; + } + return gsm48_tch_rtp_create(trans); +} + /* Trigger TCH_RTP_CREATE acknowledgement */ int gsm48_tch_rtp_create(struct gsm_trans *trans) { diff --git a/src/libmsc/msc_a.c b/src/libmsc/msc_a.c index e4888ec..c022ee2 100644 --- a/src/libmsc/msc_a.c +++ b/src/libmsc/msc_a.c @@ -564,6 +564,66 @@ } } +static struct call_leg *msc_a_ensure_call_leg(struct msc_a *msc_a, struct gsm_trans *for_cc_trans) +{ + struct call_leg *cl = msc_a->cc.call_leg; + struct gsm_network *net = msc_a_net(msc_a); + + /* Ensure that events about RTP endpoints coming from the msc_a->cc.call_leg know which gsm_trans to abort on + * error */ + if (!msc_a->cc.active_trans) + msc_a->cc.active_trans = for_cc_trans; + if (msc_a->cc.active_trans != for_cc_trans) { + LOG_TRANS(for_cc_trans, LOGL_ERROR, + "Cannot create call leg, another trans is already active for this conn\n"); + return NULL; + } + + if (!cl) { + cl = msc_a->cc.call_leg = call_leg_alloc(msc_a->c.fi, + MSC_EV_CALL_LEG_TERM, + MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE, + MSC_EV_CALL_LEG_RTP_COMPLETE); + OSMO_ASSERT(cl); + + if (net->use_osmux != OSMUX_USAGE_OFF) { + struct msc_i *msc_i = msc_a_msc_i(msc_a); + if (msc_i->c.remote_to) { + /* TODO: investigate what to do in this case */ + LOG_MSC_A(msc_a, LOGL_ERROR, "Osmux not yet supported for inter-MSC"); + } else { + cl->ran_peer_supports_osmux = msc_i->ran_conn->ran_peer->remote_supports_osmux; + } + } + + } + return cl; +} + +int msc_a_ensure_cn_local_rtp(struct msc_a *msc_a, struct gsm_trans *cc_trans) +{ + struct call_leg *cl; + struct rtp_stream *rtp_to_ran; + + cl = msc_a_ensure_call_leg(msc_a, cc_trans); + if (!cl) + return -EINVAL; + rtp_to_ran = cl->rtp[RTP_TO_RAN]; + + if (call_leg_local_ip(cl, RTP_TO_CN)) { + /* Already has an RTP address and port towards the CN, continue right away. */ + return osmo_fsm_inst_dispatch(msc_a->c.fi, MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE, cl->rtp[RTP_TO_CN]); + } + + /* No CN RTP address available yet, ask the MGW to create one. + * Set a codec to be used: if Assignment on the RAN side is already done, take the same codec as the RTP_TO_RAN. + * If no RAN side RTP is established, try to guess a preliminary codec from SDP -- before Assignment, picking a + * codec from the SDP is more politeness/avoiding confusion than necessity. The actual codec to be used would be + * determined later. If no codec could be determined, pass none for the time being. */ + return call_leg_ensure_ci(cl, RTP_TO_CN, cc_trans->callref, cc_trans, + rtp_to_ran->codecs_known ? &rtp_to_ran->codecs : NULL, NULL); +} + /* The MGW has given us a local IP address for the RAN side. Ready to start the Assignment of a voice channel. */ static void msc_a_call_leg_ran_local_addr_available(struct msc_a *msc_a) { @@ -617,15 +677,6 @@ } } -static void msc_a_call_leg_cn_local_addr_available(struct msc_a *msc_a, struct gsm_trans *cc_trans) -{ - if (gsm48_tch_rtp_create(cc_trans)) { - LOG_MSC_A(msc_a, LOGL_ERROR, "Cannot inform MNCC of RTP address\n"); - trans_free(cc_trans); - return; - } -} - static struct gsm_trans *find_waiting_call(struct msc_a *msc_a) { struct gsm_trans *trans; @@ -719,7 +770,7 @@ msc_a_call_leg_ran_local_addr_available(msc_a); return; case RTP_TO_CN: - msc_a_call_leg_cn_local_addr_available(msc_a, rtps->for_trans); + cc_on_cn_local_rtp_port_known(rtps->for_trans); return; default: LOG_MSC_A(msc_a, LOGL_ERROR, "Invalid data for %s\n", osmo_fsm_event_name(fi->fsm, event)); @@ -1338,7 +1389,7 @@ struct rtp_stream *rtps_to_ran = msc_a->cc.call_leg ? msc_a->cc.call_leg->rtp[RTP_TO_RAN] : NULL; const struct gsm0808_speech_codec *codec_if_known = ac->assignment_complete.codec_present ? &ac->assignment_complete.codec : NULL; - const struct codec_mapping *codec_cn = NULL; + const struct codec_mapping *codec_cn; if (!rtps_to_ran) { LOG_MSC_A(msc_a, LOGL_ERROR, "Rx Assignment Complete, but no RTP stream is set up\n"); @@ -1397,23 +1448,19 @@ if (rtps_to_ran->use_osmux) rtp_stream_set_remote_osmux_cid(rtps_to_ran, ac->assignment_complete.osmux_cid); - rtp_stream_commit(rtps_to_ran); /* Remember the Codec List (BSS Supported) */ if (ac->assignment_complete.codec_list_bss_supported) codec_filter_set_bss(&cc_trans->cc.codecs, ac->assignment_complete.codec_list_bss_supported); - /* Setup CN side endpoint CI: - * Now that - * - the first CI has been created and a definitive endpoint name is assigned to the call_leg's MGW - * endpoint, - * - the Assignment has chosen a speech codec - * go on to create the CN side RTP stream's CI. */ codec_filter_run(&cc_trans->cc.codecs); - if (call_leg_ensure_ci(msc_a->cc.call_leg, RTP_TO_CN, cc_trans->callref, cc_trans, - &cc_trans->cc.codecs.result.audio_codecs, NULL)) { - LOG_MSC_A_CAT(msc_a, DCC, LOGL_ERROR, "Error creating MGW CI towards CN\n"); + LOG_TRANS(cc_trans, LOGL_INFO, "Assignment Complete: RAN: %s, CN: %s\n", + sdp_audio_codecs_to_str(&rtps_to_ran->codecs), + sdp_audio_codecs_to_str(&cc_trans->cc.codecs.result.audio_codecs)); + + if (cc_on_assignment_done(cc_trans)) { + /* If an error occurred, it was logged in cc_assignment_done() */ call_leg_release(msc_a->cc.call_leg); return; } @@ -1804,10 +1851,9 @@ static int msc_a_start_assignment(struct msc_a *msc_a, struct gsm_trans *cc_trans) { - struct call_leg *cl = msc_a->cc.call_leg; - struct msc_i *msc_i = msc_a_msc_i(msc_a); - struct gsm_network *net = msc_a_net(msc_a); - struct sdp_audio_codecs *codecs; + struct call_leg *cl; + bool cn_rtp_available; + bool ran_rtp_available; OSMO_ASSERT(!msc_a->cc.active_trans); msc_a->cc.active_trans = cc_trans; @@ -1815,36 +1861,39 @@ cc_trans->cc.codecs.assignment = (struct sdp_audio_codec){}; OSMO_ASSERT(cc_trans && cc_trans->type == TRANS_CC); + cl = msc_a_ensure_call_leg(msc_a, cc_trans); + if (!cl) + return -EINVAL; - if (!cl) { - cl = msc_a->cc.call_leg = call_leg_alloc(msc_a->c.fi, - MSC_EV_CALL_LEG_TERM, - MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE, - MSC_EV_CALL_LEG_RTP_COMPLETE); - OSMO_ASSERT(cl); - } - - if (net->use_osmux != OSMUX_USAGE_OFF) { - msc_i = msc_a_msc_i(msc_a); - if (msc_i->c.remote_to) { - /* TODO: investigate what to do in this case */ - LOG_MSC_A(msc_a, LOGL_ERROR, "Osmux not yet supported for inter-MSC"); - } else { - cl->ran_peer_supports_osmux = msc_i->ran_conn->ran_peer->remote_supports_osmux; - } - } - - /* Make sure an MGW endpoint towards RAN is present. If it is already set up, "skip" to - * MSC_EV_CALL_LEG_LOCAL_ADDR_AVAILABLE immediately. If not, set it up. */ - if (call_leg_local_ip(cl, RTP_TO_RAN)) - return osmo_fsm_inst_dispatch(msc_a->c.fi, MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE, cl->rtp[RTP_TO_RAN]); - + /* See if we can set a preliminary codec. If not, pass none for the time being. */ codec_filter_run(&cc_trans->cc.codecs); - if (msc_a->c.ran->force_mgw_codecs_to_ran.count) - codecs = &msc_a->c.ran->force_mgw_codecs_to_ran; - else - codecs = &cc_trans->cc.codecs.result.audio_codecs; - return call_leg_ensure_ci(msc_a->cc.call_leg, RTP_TO_RAN, cc_trans->callref, cc_trans, codecs, NULL); + + cn_rtp_available = call_leg_local_ip(cl, RTP_TO_CN); + ran_rtp_available = call_leg_local_ip(cl, RTP_TO_RAN); + + /* Set up RTP ports for both RAN and CN side. Even though we ask for both at the same time, the + * osmo_mgcpc_ep_fsm automagically waits for the first CRCX to complete before firing the second CRCX. The one + * issued first here will also be the first CRCX sent to the MGW. Usually both still need to be set up. */ + if (!cn_rtp_available) + call_leg_ensure_ci(cl, RTP_TO_CN, cc_trans->callref, cc_trans, + &cc_trans->cc.codecs.result.audio_codecs, NULL); + if (!ran_rtp_available) { + struct sdp_audio_codecs *codecs; + if (msc_a->c.ran->force_mgw_codecs_to_ran.count) + codecs = &msc_a->c.ran->force_mgw_codecs_to_ran; + else + codecs = &cc_trans->cc.codecs.result.audio_codecs; + return call_leg_ensure_ci(cl, RTP_TO_RAN, cc_trans->callref, cc_trans, codecs, NULL); + } + + /* Should these already be set up, immediately continue by retriggering the events signalling that the RTP + * ports are available. The ordering is: first CN, then RAN. */ + if (cn_rtp_available && ran_rtp_available) + return osmo_fsm_inst_dispatch(msc_a->c.fi, MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE, cl->rtp[RTP_TO_RAN]); + else if (cn_rtp_available) + return osmo_fsm_inst_dispatch(msc_a->c.fi, MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE, cl->rtp[RTP_TO_CN]); + /* Otherwise wait for MGCP response and continue from there. */ + return 0; } int msc_a_try_call_assignment(struct gsm_trans *cc_trans) diff --git a/tests/msc_vlr/msc_vlr_test_call.c b/tests/msc_vlr/msc_vlr_test_call.c index 84614dc..07c6e13 100644 --- a/tests/msc_vlr/msc_vlr_test_call.c +++ b/tests/msc_vlr/msc_vlr_test_call.c @@ -202,8 +202,9 @@ BTW("a call is initiated"); - btw("SETUP gets forwarded to MNCC"); - cc_to_mncc_expect_tx(IMSI, MNCC_SETUP_IND); + btw("CC SETUP causes CRCX towards CN"); + expect_crcx(RTP_TO_CN); + expect_crcx(RTP_TO_RAN); ms_sends_msg("0385" /* CC, seq = 2 -> 0x80 | CC Setup = 0x5 */ "0406600402000581" /* Bearer Capability */ "5e038121f3" /* Called Number BCD */ @@ -212,27 +213,27 @@ "04026000" /* UMTS: AMR 2 | AMR */ "00021f00" /* GSM: HR AMR | FR AMR | GSM EFR | GSM HR | GSM FR */ ); + OSMO_ASSERT(crcx_scheduled(RTP_TO_CN)); + OSMO_ASSERT(crcx_scheduled(RTP_TO_RAN)); + + btw("As soon as the MGW port towards CN is created, MNCC_SETUP_IND is triggered"); + cc_to_mncc_expect_tx(IMSI, MNCC_SETUP_IND); + crcx_ok(RTP_TO_CN); OSMO_ASSERT(cc_to_mncc_tx_confirmed); mncc.callref = cc_to_mncc_tx_got_callref; btw("MNCC replies with MNCC_RTP_CREATE, causing MGW endpoint CRCX to RAN"); - expect_crcx(RTP_TO_RAN); mncc_sends_to_cc(MNCC_RTP_CREATE, &mncc); - OSMO_ASSERT(crcx_scheduled(RTP_TO_RAN)); btw("MGW acknowledges the CRCX, triggering Assignment"); expect_iu_rab_assignment(); crcx_ok(RTP_TO_RAN); OSMO_ASSERT(iu_rab_assignment_sent); - btw("Assignment succeeds, triggering CRCX to CN"); - expect_crcx(RTP_TO_CN); - ms_sends_assignment_complete("AMR"); - OSMO_ASSERT(crcx_scheduled(RTP_TO_CN)); - - btw("CN RTP address is available, trigger MNCC_RTP_CREATE"); + btw("Assignment succeeds, triggering MNCC_RTP_CREATE ack to MNCC"); cc_to_mncc_expect_tx("", MNCC_RTP_CREATE); - crcx_ok(RTP_TO_CN); + ms_sends_assignment_complete("AMR"); + OSMO_ASSERT(cc_to_mncc_tx_confirmed); btw("MNCC says that's fine"); dtap_expect_tx("8302" /* CC: Call Proceeding */); @@ -345,18 +346,17 @@ ms_sends_security_mode_complete(1); btw("MS confirms call, we create a RAN-side RTP and forward MNCC_CALL_CONF_IND"); + expect_crcx(RTP_TO_CN); expect_crcx(RTP_TO_RAN); cc_to_mncc_expect_tx(IMSI, MNCC_CALL_CONF_IND); ms_sends_msg("8348" /* CC: Call Confirmed */ "0406600402000581" /* Bearer Capability */ "15020100" /* Call Control Capabilities */ "40080402600400021f00" /* Supported Codec List */); + OSMO_ASSERT(crcx_scheduled(RTP_TO_CN)); OSMO_ASSERT(crcx_scheduled(RTP_TO_RAN)); OSMO_ASSERT(cc_to_mncc_tx_confirmed); - btw("MNCC sends MNCC_RTP_CREATE"); - mncc_sends_to_cc(MNCC_RTP_CREATE, &mncc); - btw("MGW acknowledges the CRCX to RAN, triggering Assignment"); expect_iu_rab_assignment(); crcx_ok(RTP_TO_RAN); @@ -365,21 +365,26 @@ btw("Assignment completes, triggering CRCX to CN"); expect_crcx(RTP_TO_CN); ms_sends_assignment_complete("AMR"); - OSMO_ASSERT(crcx_scheduled(RTP_TO_CN)); - btw("When the CN side RTP address is known, send MNCC_RTP_CREATE"); + btw("MNCC sends MNCC_RTP_CREATE, which first waits for the CN side RTP"); + mncc_sends_to_cc(MNCC_RTP_CREATE, &mncc); + + btw("When the CN side RTP address is known, ack MNCC_RTP_CREATE with full SDP"); cc_to_mncc_expect_tx("", MNCC_RTP_CREATE); crcx_ok(RTP_TO_CN); + OSMO_ASSERT(cc_to_mncc_tx_confirmed); fake_time_passes(1, 23); cc_to_mncc_expect_tx("", MNCC_ALERT_IND); ms_sends_msg("8381" /* CC: Alerting */); + OSMO_ASSERT(cc_to_mncc_tx_confirmed); fake_time_passes(1, 23); cc_to_mncc_expect_tx(IMSI, MNCC_SETUP_CNF); ms_sends_msg("83c7" /* CC: Connect */); + OSMO_ASSERT(cc_to_mncc_tx_confirmed); dtap_expect_tx("030f" /* CC: Connect Acknowledge */); mncc_sends_to_cc(MNCC_SETUP_COMPL_REQ, &mncc); @@ -466,16 +471,18 @@ ms_sends_security_mode_complete(1); btw("MS confirms call, we create a RAN-side RTP and forward MNCC_CALL_CONF_IND"); + expect_crcx(RTP_TO_CN); expect_crcx(RTP_TO_RAN); cc_to_mncc_expect_tx(IMSI, MNCC_CALL_CONF_IND); ms_sends_msg("8348" /* CC: Call Confirmed */ "0406600402000581" /* Bearer Capability */ "15020100" /* Call Control Capabilities */ "40080402600400021f00" /* Supported Codec List */); + OSMO_ASSERT(crcx_scheduled(RTP_TO_CN)); OSMO_ASSERT(crcx_scheduled(RTP_TO_RAN)); OSMO_ASSERT(cc_to_mncc_tx_confirmed); - btw("MNCC sends MNCC_RTP_CREATE"); + btw("MNCC sends MNCC_RTP_CREATE, which first waits for the CN side RTP"); mncc_sends_to_cc(MNCC_RTP_CREATE, &mncc); btw("MGW acknowledges the CRCX to RAN, triggering Assignment"); @@ -484,13 +491,13 @@ OSMO_ASSERT(iu_rab_assignment_sent); btw("Assignment completes, triggering CRCX to CN"); - expect_crcx(RTP_TO_CN); ms_sends_assignment_complete("AMR"); - OSMO_ASSERT(crcx_scheduled(RTP_TO_CN)); - btw("When the CN side RTP address is known, send MNCC_RTP_CREATE"); + btw("When the CN side RTP address is known, ack MNCC_RTP_CREATE with full SDP"); cc_to_mncc_expect_tx("", MNCC_RTP_CREATE); crcx_ok(RTP_TO_CN); + OSMO_ASSERT(cc_to_mncc_tx_confirmed); + fake_time_passes(1, 23); cc_to_mncc_expect_tx("", MNCC_ALERT_IND); @@ -557,8 +564,9 @@ BTW("a call is initiated"); - btw("SETUP gets forwarded to MNCC"); - cc_to_mncc_expect_tx(IMSI, MNCC_SETUP_IND); + btw("CC SETUP causes CRCX towards CN"); + expect_crcx(RTP_TO_CN); + expect_crcx(RTP_TO_RAN); ms_sends_msg("0385" /* CC, seq = 2 -> 0x80 | CC Setup = 0x5 */ "0406600402000581" /* Bearer Capability */ "5e038121f3" /* Called Number BCD */ @@ -567,27 +575,27 @@ "04026000" /* UMTS: AMR 2 | AMR */ "00021f00" /* GSM: HR AMR | FR AMR | GSM EFR | GSM HR | GSM FR */ ); + OSMO_ASSERT(crcx_scheduled(RTP_TO_CN)); + OSMO_ASSERT(crcx_scheduled(RTP_TO_RAN)); + + btw("As soon as the MGW port towards CN is created, MNCC_SETUP_IND is triggered"); + cc_to_mncc_expect_tx(IMSI, MNCC_SETUP_IND); + crcx_ok(RTP_TO_CN); OSMO_ASSERT(cc_to_mncc_tx_confirmed); mncc.callref = cc_to_mncc_tx_got_callref; btw("MNCC replies with MNCC_RTP_CREATE, causing MGW endpoint CRCX to RAN"); - expect_crcx(RTP_TO_RAN); mncc_sends_to_cc(MNCC_RTP_CREATE, &mncc); - OSMO_ASSERT(crcx_scheduled(RTP_TO_RAN)); btw("MGW acknowledges the CRCX, triggering Assignment"); expect_iu_rab_assignment(); crcx_ok(RTP_TO_RAN); OSMO_ASSERT(iu_rab_assignment_sent); - btw("Assignment succeeds, triggering CRCX to CN"); - expect_crcx(RTP_TO_CN); - ms_sends_assignment_complete("AMR"); - OSMO_ASSERT(crcx_scheduled(RTP_TO_CN)); - - btw("CN RTP address is available, trigger MNCC_RTP_CREATE"); + btw("Assignment succeeds, triggering MNCC_RTP_CREATE ack to MNCC"); cc_to_mncc_expect_tx("", MNCC_RTP_CREATE); - crcx_ok(RTP_TO_CN); + ms_sends_assignment_complete("AMR"); + OSMO_ASSERT(cc_to_mncc_tx_confirmed); btw("MNCC says that's fine"); dtap_expect_tx("8302" /* CC: Call Proceeding */); @@ -604,7 +612,6 @@ expect_iu_release(); cc_to_mncc_expect_tx("", MNCC_REL_CNF); ms_sends_msg("036a" /* CC: Release Complete */); - OSMO_ASSERT(cc_to_mncc_tx_confirmed); OSMO_ASSERT(iu_release_sent); OSMO_ASSERT(cc_to_mncc_tx_confirmed); @@ -653,8 +660,9 @@ BTW("a call is initiated"); - btw("SETUP gets forwarded to MNCC"); - cc_to_mncc_expect_tx(IMSI, MNCC_SETUP_IND); + btw("CC SETUP causes CRCX towards CN"); + expect_crcx(RTP_TO_CN); + expect_crcx(RTP_TO_RAN); ms_sends_msg("0385" /* CC, seq = 2 -> 0x80 | CC Setup = 0x5 */ "0406600402000581" /* Bearer Capability */ "5e038121f3" /* Called Number BCD */ @@ -663,27 +671,27 @@ "04026000" /* UMTS: AMR 2 | AMR */ "00021f00" /* GSM: HR AMR | FR AMR | GSM EFR | GSM HR | GSM FR */ ); + OSMO_ASSERT(crcx_scheduled(RTP_TO_CN)); + OSMO_ASSERT(crcx_scheduled(RTP_TO_RAN)); + + btw("As soon as the MGW port towards CN is created, MNCC_SETUP_IND is triggered"); + cc_to_mncc_expect_tx(IMSI, MNCC_SETUP_IND); + crcx_ok(RTP_TO_CN); OSMO_ASSERT(cc_to_mncc_tx_confirmed); mncc.callref = cc_to_mncc_tx_got_callref; btw("MNCC replies with MNCC_RTP_CREATE, causing MGW endpoint CRCX to RAN"); - expect_crcx(RTP_TO_RAN); mncc_sends_to_cc(MNCC_RTP_CREATE, &mncc); - OSMO_ASSERT(crcx_scheduled(RTP_TO_RAN)); btw("MGW acknowledges the CRCX, triggering Assignment"); expect_iu_rab_assignment(); crcx_ok(RTP_TO_RAN); OSMO_ASSERT(iu_rab_assignment_sent); - btw("Assignment succeeds, triggering CRCX to CN"); - expect_crcx(RTP_TO_CN); - ms_sends_assignment_complete("AMR"); - OSMO_ASSERT(crcx_scheduled(RTP_TO_CN)); - - btw("CN RTP address is available, trigger MNCC_RTP_CREATE"); + btw("Assignment succeeds, triggering MNCC_RTP_CREATE ack to MNCC"); cc_to_mncc_expect_tx("", MNCC_RTP_CREATE); - crcx_ok(RTP_TO_CN); + ms_sends_assignment_complete("AMR"); + OSMO_ASSERT(cc_to_mncc_tx_confirmed); btw("MNCC says that's fine"); dtap_expect_tx("8302" /* CC: Call Proceeding */); diff --git a/tests/msc_vlr/msc_vlr_test_call.err b/tests/msc_vlr/msc_vlr_test_call.err index 1cd3bd7..4e7d3bc 100644 --- a/tests/msc_vlr/msc_vlr_test_call.err +++ b/tests/msc_vlr/msc_vlr_test_call.err @@ -275,7 +275,7 @@ - a call is initiated -- SETUP gets forwarded to MNCC +- CC SETUP causes CRCX towards CN MSC <--UTRAN-Iu-- MS: GSM48_MT_CC_SETUP DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_AUTHENTICATED}: + rx_from_ms: now used by 2 (cm_service_cc,rx_from_ms) DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_AUTHENTICATED}: RAN decode: DTAP @@ -288,46 +288,48 @@ DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: - cm_service_cc: now used by 2 (rx_from_ms,cc) DCC trans(CC:NULL IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) rx SETUP in state NULL DCC trans(CC:NULL IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) starting guard timer with 180 seconds +DCC trans(CC:NULL IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) SETUP to 123 +DCC trans(CC:NULL IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) codecs: :0{AMR:octet-align=1#112} (from: MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) DCC trans(CC:NULL IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) new state NULL -> INITIATED -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) SETUP to 123 -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) codecs: :0{AMR:octet-align=1#112} (from: MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) -DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) tx MNCC_SETUP_IND - MSC --> MNCC: callref 0x80000001: MNCC_SETUP_IND -DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: - rx_from_ms: now used by 1 (cc) -- MNCC replies with MNCC_RTP_CREATE, causing MGW endpoint CRCX to RAN - MSC <-- MNCC: callref 0x80000001: MNCC_RTP_CREATE - -DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) rx MNCC_RTP_CREATE DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Starting call assignment DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: Allocated DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: is child of msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) + MGW <--CRCX to RTP_TO_CN-- MSC: callref=0x80000001 codecs=AMR:octet-align=1#112 +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: Allocated +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: is child of call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483649:RTP_TO_CN:no-CI){UNINITIALIZED}: setting codecs to AMR:octet-align=1#112 MGW <--CRCX to RTP_TO_RAN-- MSC: callref=0x80000001 codecs=VND.3GPP.IUFP/16000#96 DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: Allocated DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: is child of call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483649:RTP_TO_RAN:no-CI){UNINITIALIZED}: setting codecs to VND.3GPP.IUFP/16000#96 +DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: - rx_from_ms: now used by 1 (cc) +- As soon as the MGW port towards CN is created, MNCC_SETUP_IND is triggered + MGW --CRCX OK to RTP_TO_CN--> MSC +DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE +DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Received Event MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE +DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: MGW endpoint's RTP address available for the CI RTP_TO_CN: 10.23.23.1:23 (osmux=no:-2) +DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) tx MNCC_SETUP_IND + MSC --> MNCC: callref 0x80000001: MNCC_SETUP_IND +- MNCC replies with MNCC_RTP_CREATE, causing MGW endpoint CRCX to RAN + MSC <-- MNCC: callref 0x80000001: MNCC_RTP_CREATE + +DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) rx MNCC_RTP_CREATE +DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Assignment for this trans already started earlier - MGW acknowledges the CRCX, triggering Assignment MGW --CRCX OK to RTP_TO_RAN--> MSC DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Received Event MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: MGW endpoint's RTP address available for the CI RTP_TO_RAN: 10.23.23.1:23 (osmux=no:-2) -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) Sending Assignment Command with codecs: :0{AMR:octet-align=1#112} (from: MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) +DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) Sending Assignment Command with codecs: 10.23.23.1:23{AMR:octet-align=1#112} (from: MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: RAN encode: ASSIGNMENT_COMMAND on UTRAN-Iu DMSC dummy_msc_i(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){0}: Received Event MSC_I_EV_FROM_A_FORWARD_ACCESS_SIGNALLING_REQUEST -- Assignment succeeds, triggering CRCX to CN +- Assignment succeeds, triggering MNCC_RTP_CREATE ack to MNCC DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: RAN decode: ASSIGNMENT_COMPLETE DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483649:RTP_TO_RAN:no-CI){UNINITIALIZED}: setting remote addr to 1.2.3.4:1234 DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483649:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Not committing: no MGW endpoint CI set up - MGW <--CRCX to RTP_TO_CN-- MSC: callref=0x80000001 codecs=VND.3GPP.IUFP/16000#96 -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: Allocated -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: is child of call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483649:RTP_TO_CN:no-CI){UNINITIALIZED}: setting codecs to VND.3GPP.IUFP/16000#96 -- CN RTP address is available, trigger MNCC_RTP_CREATE - MGW --CRCX OK to RTP_TO_CN--> MSC -DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE -DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Received Event MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE -DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: MGW endpoint's RTP address available for the CI RTP_TO_CN: 10.23.23.1:23 (osmux=no:-2) -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) codecs: :0{VND.3GPP.IUFP/16000#96} (from: assigned=VND.3GPP.IUFP/16000#96 MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) MNCC_RTP_CREATE SDP: remote=:0{VND.3GPP.IUFP/16000#96} +DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) Assignment Complete: RAN: VND.3GPP.IUFP/16000#96, CN: VND.3GPP.IUFP/16000#96 +DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) codecs: 10.23.23.1:23{VND.3GPP.IUFP/16000#96} (from: assigned=VND.3GPP.IUFP/16000#96 MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) +DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) MNCC_RTP_CREATE SDP: remote=10.23.23.1:23{VND.3GPP.IUFP/16000#96} DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000001 tid-8) tx MNCC_RTP_CREATE MSC --> MNCC: callref 0x80000001: MNCC_RTP_CREATE - MNCC says that's fine @@ -432,12 +434,12 @@ DREF VLR subscr IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100 + vlr_subscr_cancel_attach_fsm: now used by 4 (attached,active-conn,msc_a_fsm_releasing_onenter,vlr_subscr_cancel_attach_fsm) DREF VLR subscr IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100 - vlr_subscr_cancel_attach_fsm: now used by 3 (attached,active-conn,msc_a_fsm_releasing_onenter) DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: state_chg to RELEASING -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483649:RTP_TO_CN:no-CI){UNINITIALIZED}: Terminating (cause = OSMO_FSM_TERM_PARENT) -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483649:RTP_TO_CN:no-CI){UNINITIALIZED}: Removing from parent call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483649:RTP_TO_CN:no-CI){UNINITIALIZED}: Deallocated DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483649:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Terminating (cause = OSMO_FSM_TERM_PARENT) DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483649:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Removing from parent call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483649:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Deallocated +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483649:RTP_TO_CN:no-CI){UNINITIALIZED}: Terminating (cause = OSMO_FSM_TERM_PARENT) +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483649:RTP_TO_CN:no-CI){UNINITIALIZED}: Removing from parent call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483649:RTP_TO_CN:no-CI){UNINITIALIZED}: Deallocated DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){RELEASING}: Terminating (cause = OSMO_FSM_TERM_REGULAR) DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){RELEASING}: Removing from parent msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_RELEASING}: Received Event MSC_EV_CALL_LEG_TERM @@ -791,22 +793,21 @@ DCC trans(CC:CALL_PRESENT IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) rx CALL_CONF in state CALL_PRESENT DCC trans(CC:CALL_PRESENT IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) stopping pending timer T303 DCC trans(CC:CALL_PRESENT IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) starting timer T310 with 30 seconds -DCC trans(CC:CALL_PRESENT IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) new state CALL_PRESENT -> MO_TERM_CALL_CONF DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: Starting call assignment DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){ESTABLISHING}: Allocated DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){ESTABLISHING}: is child of msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP) + MGW <--CRCX to RTP_TO_CN-- MSC: callref=0x423 codecs=AMR:octet-align=1#112 +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){UNINITIALIZED}: Allocated +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){UNINITIALIZED}: is child of call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP) +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_CN:no-CI){UNINITIALIZED}: setting codecs to AMR:octet-align=1#112 MGW <--CRCX to RTP_TO_RAN-- MSC: callref=0x423 codecs=VND.3GPP.IUFP/16000#96 DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){UNINITIALIZED}: Allocated DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){UNINITIALIZED}: is child of call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP) DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_RAN:no-CI){UNINITIALIZED}: setting codecs to VND.3GPP.IUFP/16000#96 +DCC trans(CC:CALL_PRESENT IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) new state CALL_PRESENT -> MO_TERM_CALL_CONF DMNCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) tx MNCC_CALL_CONF_IND MSC --> MNCC: callref 0x423: MNCC_CALL_CONF_IND DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: - rx_from_ms: now used by 1 (cc) -- MNCC sends MNCC_RTP_CREATE - MSC <-- MNCC: callref 0x423: MNCC_RTP_CREATE - -DMNCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) rx MNCC_RTP_CREATE -DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: Assignment for this trans already started earlier - MGW acknowledges the CRCX to RAN, triggering Assignment MGW --CRCX OK to RTP_TO_RAN--> MSC DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE @@ -819,17 +820,20 @@ DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: RAN decode: ASSIGNMENT_COMPLETE DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_RAN:no-CI){UNINITIALIZED}: setting remote addr to 1.2.3.4:1234 DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Not committing: no MGW endpoint CI set up - MGW <--CRCX to RTP_TO_CN-- MSC: callref=0x423 codecs=VND.3GPP.IUFP/16000#96 -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){UNINITIALIZED}: Allocated -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){UNINITIALIZED}: is child of call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP) -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_CN:no-CI){UNINITIALIZED}: setting codecs to VND.3GPP.IUFP/16000#96 -- When the CN side RTP address is known, send MNCC_RTP_CREATE +DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) Assignment Complete: RAN: VND.3GPP.IUFP/16000#96, CN: VND.3GPP.IUFP/16000#96 +DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) Assignment complete, but still waiting for the CRCX OK on the CN side RTP +- MNCC sends MNCC_RTP_CREATE, which first waits for the CN side RTP + MSC <-- MNCC: callref 0x423: MNCC_RTP_CREATE + +DMNCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) rx MNCC_RTP_CREATE +DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: Assignment for this trans already started earlier +- When the CN side RTP address is known, ack MNCC_RTP_CREATE with full SDP MGW --CRCX OK to RTP_TO_CN--> MSC DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: Received Event MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: MGW endpoint's RTP address available for the CI RTP_TO_CN: 10.23.23.1:23 (osmux=no:-2) -DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) codecs: :0{VND.3GPP.IUFP/16000#96} (from: assigned=VND.3GPP.IUFP/16000#96 remote=10.23.23.1:23{AMR:octet-align=1#112} MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) -DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) MNCC_RTP_CREATE SDP: remote=:0{VND.3GPP.IUFP/16000#96} +DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) codecs: 10.23.23.1:23{VND.3GPP.IUFP/16000#96} (from: assigned=VND.3GPP.IUFP/16000#96 remote=10.23.23.1:23{AMR:octet-align=1#112} MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) +DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) MNCC_RTP_CREATE SDP: remote=10.23.23.1:23{VND.3GPP.IUFP/16000#96} DMNCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) tx MNCC_RTP_CREATE MSC --> MNCC: callref 0x423: MNCC_RTP_CREATE - Total time passed: 1.000023 s @@ -841,7 +845,7 @@ DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) stopping pending timer T310 DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) starting timer T301 with 180 seconds DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) new state MO_TERM_CALL_CONF -> CALL_RECEIVED -DCC trans(CC:CALL_RECEIVED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) codecs: :0{VND.3GPP.IUFP/16000#96} (from: assigned=VND.3GPP.IUFP/16000#96 remote=10.23.23.1:23{AMR:octet-align=1#112} MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) +DCC trans(CC:CALL_RECEIVED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) codecs: 10.23.23.1:23{VND.3GPP.IUFP/16000#96} (from: assigned=VND.3GPP.IUFP/16000#96 remote=10.23.23.1:23{AMR:octet-align=1#112} MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) DMNCC trans(CC:CALL_RECEIVED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) tx MNCC_ALERT_IND MSC --> MNCC: callref 0x423: MNCC_ALERT_IND DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: - rx_from_ms: now used by 1 (cc) @@ -917,12 +921,12 @@ DREF VLR subscr IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100 + vlr_subscr_cancel_attach_fsm: now used by 4 (attached,active-conn,msc_a_fsm_releasing_onenter,vlr_subscr_cancel_attach_fsm) DREF VLR subscr IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100 - vlr_subscr_cancel_attach_fsm: now used by 3 (attached,active-conn,msc_a_fsm_releasing_onenter) DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){ESTABLISHING}: state_chg to RELEASING -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_CN:no-CI){UNINITIALIZED}: Terminating (cause = OSMO_FSM_TERM_PARENT) -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_CN:no-CI){UNINITIALIZED}: Removing from parent call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP) -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_CN:no-CI){UNINITIALIZED}: Deallocated DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Terminating (cause = OSMO_FSM_TERM_PARENT) DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Removing from parent call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP) DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Deallocated +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_CN:no-CI){UNINITIALIZED}: Terminating (cause = OSMO_FSM_TERM_PARENT) +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_CN:no-CI){UNINITIALIZED}: Removing from parent call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP) +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_CN:no-CI){UNINITIALIZED}: Deallocated DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){RELEASING}: Terminating (cause = OSMO_FSM_TERM_REGULAR) DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){RELEASING}: Removing from parent msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP) DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_RELEASING}: Received Event MSC_EV_CALL_LEG_TERM @@ -1276,18 +1280,22 @@ DCC trans(CC:CALL_PRESENT IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) rx CALL_CONF in state CALL_PRESENT DCC trans(CC:CALL_PRESENT IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) stopping pending timer T303 DCC trans(CC:CALL_PRESENT IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) starting timer T310 with 30 seconds -DCC trans(CC:CALL_PRESENT IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) new state CALL_PRESENT -> MO_TERM_CALL_CONF DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: Starting call assignment DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){ESTABLISHING}: Allocated DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){ESTABLISHING}: is child of msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP) + MGW <--CRCX to RTP_TO_CN-- MSC: callref=0x423 codecs=AMR:octet-align=1#112 +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){UNINITIALIZED}: Allocated +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){UNINITIALIZED}: is child of call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP) +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_CN:no-CI){UNINITIALIZED}: setting codecs to AMR:octet-align=1#112 MGW <--CRCX to RTP_TO_RAN-- MSC: callref=0x423 codecs=VND.3GPP.IUFP/16000#96 DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){UNINITIALIZED}: Allocated DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){UNINITIALIZED}: is child of call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP) DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_RAN:no-CI){UNINITIALIZED}: setting codecs to VND.3GPP.IUFP/16000#96 +DCC trans(CC:CALL_PRESENT IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) new state CALL_PRESENT -> MO_TERM_CALL_CONF DMNCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) tx MNCC_CALL_CONF_IND MSC --> MNCC: callref 0x423: MNCC_CALL_CONF_IND DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: - rx_from_ms: now used by 1 (cc) -- MNCC sends MNCC_RTP_CREATE +- MNCC sends MNCC_RTP_CREATE, which first waits for the CN side RTP MSC <-- MNCC: callref 0x423: MNCC_RTP_CREATE v=0 o=OsmoMSC 0 0 IN IP4 10.23.23.1 @@ -1313,17 +1321,15 @@ DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: RAN decode: ASSIGNMENT_COMPLETE DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_RAN:no-CI){UNINITIALIZED}: setting remote addr to 1.2.3.4:1234 DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Not committing: no MGW endpoint CI set up - MGW <--CRCX to RTP_TO_CN-- MSC: callref=0x423 codecs=VND.3GPP.IUFP/16000#96 -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){UNINITIALIZED}: Allocated -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){UNINITIALIZED}: is child of call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP) -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_CN:no-CI){UNINITIALIZED}: setting codecs to VND.3GPP.IUFP/16000#96 -- When the CN side RTP address is known, send MNCC_RTP_CREATE +DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) Assignment Complete: RAN: VND.3GPP.IUFP/16000#96, CN: VND.3GPP.IUFP/16000#96 +DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) Assignment complete, but still waiting for the CRCX OK on the CN side RTP +- When the CN side RTP address is known, ack MNCC_RTP_CREATE with full SDP MGW --CRCX OK to RTP_TO_CN--> MSC DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: Received Event MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: MGW endpoint's RTP address available for the CI RTP_TO_CN: 10.23.23.1:23 (osmux=no:-2) -DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) codecs: :0{VND.3GPP.IUFP/16000#96} (from: assigned=VND.3GPP.IUFP/16000#96 remote=10.23.23.1:23{AMR:octet-align=1#112} MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) -DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) MNCC_RTP_CREATE SDP: remote=:0{VND.3GPP.IUFP/16000#96} +DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) codecs: 10.23.23.1:23{VND.3GPP.IUFP/16000#96} (from: assigned=VND.3GPP.IUFP/16000#96 remote=10.23.23.1:23{AMR:octet-align=1#112} MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) +DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) MNCC_RTP_CREATE SDP: remote=10.23.23.1:23{VND.3GPP.IUFP/16000#96} DMNCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) tx MNCC_RTP_CREATE MSC --> MNCC: callref 0x423: MNCC_RTP_CREATE - Total time passed: 1.000023 s @@ -1335,7 +1341,7 @@ DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) stopping pending timer T310 DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) starting timer T301 with 180 seconds DCC trans(CC:MO_TERM_CALL_CONF IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) new state MO_TERM_CALL_CONF -> CALL_RECEIVED -DCC trans(CC:CALL_RECEIVED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) codecs: :0{VND.3GPP.IUFP/16000#96} (from: assigned=VND.3GPP.IUFP/16000#96 remote=10.23.23.1:23{AMR:octet-align=1#112} MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) +DCC trans(CC:CALL_RECEIVED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) codecs: 10.23.23.1:23{VND.3GPP.IUFP/16000#96} (from: assigned=VND.3GPP.IUFP/16000#96 remote=10.23.23.1:23{AMR:octet-align=1#112} MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) DMNCC trans(CC:CALL_RECEIVED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP callref-0x423 tid-0) tx MNCC_ALERT_IND MSC --> MNCC: callref 0x423: MNCC_ALERT_IND DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_COMMUNICATING}: - rx_from_ms: now used by 1 (cc) @@ -1364,12 +1370,12 @@ DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_RELEASING}: - cc: now used by 0 (-) DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_RELEASING}: Received Event MSC_A_EV_UNUSED DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){ESTABLISHING}: state_chg to RELEASING -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_CN:no-CI){UNINITIALIZED}: Terminating (cause = OSMO_FSM_TERM_PARENT) -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_CN:no-CI){UNINITIALIZED}: Removing from parent call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP) -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_CN:no-CI){UNINITIALIZED}: Deallocated DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Terminating (cause = OSMO_FSM_TERM_PARENT) DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Removing from parent call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP) DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Deallocated +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_CN:no-CI){UNINITIALIZED}: Terminating (cause = OSMO_FSM_TERM_PARENT) +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_CN:no-CI){UNINITIALIZED}: Removing from parent call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP) +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP:trans-0:call-1059:RTP_TO_CN:no-CI){UNINITIALIZED}: Deallocated DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){RELEASING}: Terminating (cause = OSMO_FSM_TERM_REGULAR) DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){RELEASING}: Removing from parent msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP) DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:PAGING_RESP){MSC_A_ST_RELEASING}: Received Event MSC_EV_CALL_LEG_TERM @@ -1684,7 +1690,7 @@ - a call is initiated -- SETUP gets forwarded to MNCC +- CC SETUP causes CRCX towards CN MSC <--UTRAN-Iu-- MS: GSM48_MT_CC_SETUP DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_AUTHENTICATED}: + rx_from_ms: now used by 2 (cm_service_cc,rx_from_ms) DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_AUTHENTICATED}: RAN decode: DTAP @@ -1697,46 +1703,48 @@ DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: - cm_service_cc: now used by 2 (rx_from_ms,cc) DCC trans(CC:NULL IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) rx SETUP in state NULL DCC trans(CC:NULL IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) starting guard timer with 180 seconds +DCC trans(CC:NULL IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) SETUP to 123 +DCC trans(CC:NULL IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) codecs: :0{AMR:octet-align=1#112} (from: MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) DCC trans(CC:NULL IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) new state NULL -> INITIATED -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) SETUP to 123 -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) codecs: :0{AMR:octet-align=1#112} (from: MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) -DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) tx MNCC_SETUP_IND - MSC --> MNCC: callref 0x80000002: MNCC_SETUP_IND -DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: - rx_from_ms: now used by 1 (cc) -- MNCC replies with MNCC_RTP_CREATE, causing MGW endpoint CRCX to RAN - MSC <-- MNCC: callref 0x80000002: MNCC_RTP_CREATE - -DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) rx MNCC_RTP_CREATE DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Starting call assignment DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: Allocated DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: is child of msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) + MGW <--CRCX to RTP_TO_CN-- MSC: callref=0x80000002 codecs=AMR:octet-align=1#112 +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: Allocated +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: is child of call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483650:RTP_TO_CN:no-CI){UNINITIALIZED}: setting codecs to AMR:octet-align=1#112 MGW <--CRCX to RTP_TO_RAN-- MSC: callref=0x80000002 codecs=VND.3GPP.IUFP/16000#96 DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: Allocated DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: is child of call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483650:RTP_TO_RAN:no-CI){UNINITIALIZED}: setting codecs to VND.3GPP.IUFP/16000#96 +DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: - rx_from_ms: now used by 1 (cc) +- As soon as the MGW port towards CN is created, MNCC_SETUP_IND is triggered + MGW --CRCX OK to RTP_TO_CN--> MSC +DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE +DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Received Event MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE +DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: MGW endpoint's RTP address available for the CI RTP_TO_CN: 10.23.23.1:23 (osmux=no:-2) +DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) tx MNCC_SETUP_IND + MSC --> MNCC: callref 0x80000002: MNCC_SETUP_IND +- MNCC replies with MNCC_RTP_CREATE, causing MGW endpoint CRCX to RAN + MSC <-- MNCC: callref 0x80000002: MNCC_RTP_CREATE + +DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) rx MNCC_RTP_CREATE +DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Assignment for this trans already started earlier - MGW acknowledges the CRCX, triggering Assignment MGW --CRCX OK to RTP_TO_RAN--> MSC DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Received Event MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: MGW endpoint's RTP address available for the CI RTP_TO_RAN: 10.23.23.1:23 (osmux=no:-2) -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) Sending Assignment Command with codecs: :0{AMR:octet-align=1#112} (from: MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) +DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) Sending Assignment Command with codecs: 10.23.23.1:23{AMR:octet-align=1#112} (from: MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: RAN encode: ASSIGNMENT_COMMAND on UTRAN-Iu DMSC dummy_msc_i(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){0}: Received Event MSC_I_EV_FROM_A_FORWARD_ACCESS_SIGNALLING_REQUEST -- Assignment succeeds, triggering CRCX to CN +- Assignment succeeds, triggering MNCC_RTP_CREATE ack to MNCC DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: RAN decode: ASSIGNMENT_COMPLETE DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483650:RTP_TO_RAN:no-CI){UNINITIALIZED}: setting remote addr to 1.2.3.4:1234 DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483650:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Not committing: no MGW endpoint CI set up - MGW <--CRCX to RTP_TO_CN-- MSC: callref=0x80000002 codecs=VND.3GPP.IUFP/16000#96 -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: Allocated -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: is child of call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483650:RTP_TO_CN:no-CI){UNINITIALIZED}: setting codecs to VND.3GPP.IUFP/16000#96 -- CN RTP address is available, trigger MNCC_RTP_CREATE - MGW --CRCX OK to RTP_TO_CN--> MSC -DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE -DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Received Event MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE -DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: MGW endpoint's RTP address available for the CI RTP_TO_CN: 10.23.23.1:23 (osmux=no:-2) -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) codecs: :0{VND.3GPP.IUFP/16000#96} (from: assigned=VND.3GPP.IUFP/16000#96 MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) MNCC_RTP_CREATE SDP: remote=:0{VND.3GPP.IUFP/16000#96} +DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) Assignment Complete: RAN: VND.3GPP.IUFP/16000#96, CN: VND.3GPP.IUFP/16000#96 +DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) codecs: 10.23.23.1:23{VND.3GPP.IUFP/16000#96} (from: assigned=VND.3GPP.IUFP/16000#96 MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) +DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) MNCC_RTP_CREATE SDP: remote=10.23.23.1:23{VND.3GPP.IUFP/16000#96} DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000002 tid-8) tx MNCC_RTP_CREATE MSC --> MNCC: callref 0x80000002: MNCC_RTP_CREATE - MNCC says that's fine @@ -1796,12 +1804,12 @@ DREF VLR subscr IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100 + vlr_subscr_cancel_attach_fsm: now used by 4 (attached,active-conn,msc_a_fsm_releasing_onenter,vlr_subscr_cancel_attach_fsm) DREF VLR subscr IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100 - vlr_subscr_cancel_attach_fsm: now used by 3 (attached,active-conn,msc_a_fsm_releasing_onenter) DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: state_chg to RELEASING -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483650:RTP_TO_CN:no-CI){UNINITIALIZED}: Terminating (cause = OSMO_FSM_TERM_PARENT) -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483650:RTP_TO_CN:no-CI){UNINITIALIZED}: Removing from parent call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483650:RTP_TO_CN:no-CI){UNINITIALIZED}: Deallocated DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483650:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Terminating (cause = OSMO_FSM_TERM_PARENT) DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483650:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Removing from parent call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483650:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Deallocated +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483650:RTP_TO_CN:no-CI){UNINITIALIZED}: Terminating (cause = OSMO_FSM_TERM_PARENT) +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483650:RTP_TO_CN:no-CI){UNINITIALIZED}: Removing from parent call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483650:RTP_TO_CN:no-CI){UNINITIALIZED}: Deallocated DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){RELEASING}: Terminating (cause = OSMO_FSM_TERM_REGULAR) DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){RELEASING}: Removing from parent msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_RELEASING}: Received Event MSC_EV_CALL_LEG_TERM @@ -2115,7 +2123,7 @@ - a call is initiated -- SETUP gets forwarded to MNCC +- CC SETUP causes CRCX towards CN MSC <--UTRAN-Iu-- MS: GSM48_MT_CC_SETUP DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_AUTHENTICATED}: + rx_from_ms: now used by 2 (cm_service_cc,rx_from_ms) DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_AUTHENTICATED}: RAN decode: DTAP @@ -2128,46 +2136,48 @@ DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: - cm_service_cc: now used by 2 (rx_from_ms,cc) DCC trans(CC:NULL IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) rx SETUP in state NULL DCC trans(CC:NULL IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) starting guard timer with 180 seconds +DCC trans(CC:NULL IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) SETUP to 123 +DCC trans(CC:NULL IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) codecs: :0{AMR:octet-align=1#112} (from: MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) DCC trans(CC:NULL IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) new state NULL -> INITIATED -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) SETUP to 123 -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) codecs: :0{AMR:octet-align=1#112} (from: MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) -DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) tx MNCC_SETUP_IND - MSC --> MNCC: callref 0x80000003: MNCC_SETUP_IND -DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: - rx_from_ms: now used by 1 (cc) -- MNCC replies with MNCC_RTP_CREATE, causing MGW endpoint CRCX to RAN - MSC <-- MNCC: callref 0x80000003: MNCC_RTP_CREATE - -DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) rx MNCC_RTP_CREATE DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Starting call assignment DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: Allocated DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: is child of msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) + MGW <--CRCX to RTP_TO_CN-- MSC: callref=0x80000003 codecs=AMR:octet-align=1#112 +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: Allocated +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: is child of call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483651:RTP_TO_CN:no-CI){UNINITIALIZED}: setting codecs to AMR:octet-align=1#112 MGW <--CRCX to RTP_TO_RAN-- MSC: callref=0x80000003 codecs=VND.3GPP.IUFP/16000#96 DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: Allocated DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: is child of call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483651:RTP_TO_RAN:no-CI){UNINITIALIZED}: setting codecs to VND.3GPP.IUFP/16000#96 +DREF msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: - rx_from_ms: now used by 1 (cc) +- As soon as the MGW port towards CN is created, MNCC_SETUP_IND is triggered + MGW --CRCX OK to RTP_TO_CN--> MSC +DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE +DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Received Event MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE +DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: MGW endpoint's RTP address available for the CI RTP_TO_CN: 10.23.23.1:23 (osmux=no:-2) +DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) tx MNCC_SETUP_IND + MSC --> MNCC: callref 0x80000003: MNCC_SETUP_IND +- MNCC replies with MNCC_RTP_CREATE, causing MGW endpoint CRCX to RAN + MSC <-- MNCC: callref 0x80000003: MNCC_RTP_CREATE + +DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) rx MNCC_RTP_CREATE +DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Assignment for this trans already started earlier - MGW acknowledges the CRCX, triggering Assignment MGW --CRCX OK to RTP_TO_RAN--> MSC DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Received Event MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: MGW endpoint's RTP address available for the CI RTP_TO_RAN: 10.23.23.1:23 (osmux=no:-2) -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) Sending Assignment Command with codecs: :0{AMR:octet-align=1#112} (from: MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) +DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) Sending Assignment Command with codecs: 10.23.23.1:23{AMR:octet-align=1#112} (from: MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: RAN encode: ASSIGNMENT_COMMAND on UTRAN-Iu DMSC dummy_msc_i(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){0}: Received Event MSC_I_EV_FROM_A_FORWARD_ACCESS_SIGNALLING_REQUEST -- Assignment succeeds, triggering CRCX to CN +- Assignment succeeds, triggering MNCC_RTP_CREATE ack to MNCC DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: RAN decode: ASSIGNMENT_COMPLETE DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483651:RTP_TO_RAN:no-CI){UNINITIALIZED}: setting remote addr to 1.2.3.4:1234 DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483651:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Not committing: no MGW endpoint CI set up - MGW <--CRCX to RTP_TO_CN-- MSC: callref=0x80000003 codecs=VND.3GPP.IUFP/16000#96 -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: Allocated -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){UNINITIALIZED}: is child of call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483651:RTP_TO_CN:no-CI){UNINITIALIZED}: setting codecs to VND.3GPP.IUFP/16000#96 -- CN RTP address is available, trigger MNCC_RTP_CREATE - MGW --CRCX OK to RTP_TO_CN--> MSC -DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: Received Event CALL_LEG_EV_RTP_STREAM_ADDR_AVAILABLE -DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: Received Event MSC_EV_CALL_LEG_RTP_LOCAL_ADDR_AVAILABLE -DIUCS msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_COMMUNICATING}: MGW endpoint's RTP address available for the CI RTP_TO_CN: 10.23.23.1:23 (osmux=no:-2) -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) codecs: :0{VND.3GPP.IUFP/16000#96} (from: assigned=VND.3GPP.IUFP/16000#96 MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) -DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) MNCC_RTP_CREATE SDP: remote=:0{VND.3GPP.IUFP/16000#96} +DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) Assignment Complete: RAN: VND.3GPP.IUFP/16000#96, CN: VND.3GPP.IUFP/16000#96 +DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) codecs: 10.23.23.1:23{VND.3GPP.IUFP/16000#96} (from: assigned=VND.3GPP.IUFP/16000#96 MS={AMR:octet-align=1#112,GSM-EFR#110,GSM#3,GSM-HR-08#111} RAN={AMR:octet-align=1#112,AMR-WB/16000:octet-align=1#113}) +DCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) MNCC_RTP_CREATE SDP: remote=10.23.23.1:23{VND.3GPP.IUFP/16000#96} DMNCC trans(CC:INITIATED IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ callref-0x80000003 tid-8) tx MNCC_RTP_CREATE MSC --> MNCC: callref 0x80000003: MNCC_RTP_CREATE - MNCC says that's fine @@ -2224,12 +2234,12 @@ DREF VLR subscr IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100 + vlr_subscr_cancel_attach_fsm: now used by 4 (attached,active-conn,msc_a_fsm_releasing_onenter,vlr_subscr_cancel_attach_fsm) DREF VLR subscr IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100 - vlr_subscr_cancel_attach_fsm: now used by 3 (attached,active-conn,msc_a_fsm_releasing_onenter) DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){ESTABLISHING}: state_chg to RELEASING -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483651:RTP_TO_CN:no-CI){UNINITIALIZED}: Terminating (cause = OSMO_FSM_TERM_PARENT) -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483651:RTP_TO_CN:no-CI){UNINITIALIZED}: Removing from parent call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) -DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483651:RTP_TO_CN:no-CI){UNINITIALIZED}: Deallocated DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483651:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Terminating (cause = OSMO_FSM_TERM_PARENT) DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483651:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Removing from parent call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483651:RTP_TO_RAN:no-CI:local-10-23-23-1-23:remote-1-2-3-4-1234){UNINITIALIZED}: Deallocated +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483651:RTP_TO_CN:no-CI){UNINITIALIZED}: Terminating (cause = OSMO_FSM_TERM_PARENT) +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483651:RTP_TO_CN:no-CI){UNINITIALIZED}: Removing from parent call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) +DCC rtp_stream(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ:trans-8:call-2147483651:RTP_TO_CN:no-CI){UNINITIALIZED}: Deallocated DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){RELEASING}: Terminating (cause = OSMO_FSM_TERM_REGULAR) DCC call_leg(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){RELEASING}: Removing from parent msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ) DMSC msc_a(IMSI-901700000010650:MSISDN-42342:TMSI-0x03020100:UTRAN-Iu:CM_SERVICE_REQ){MSC_A_ST_RELEASING}: Received Event MSC_EV_CALL_LEG_TERM -- To view, visit https://gerrit.osmocom.org/c/osmo-msc/+/31740 To unsubscribe, or for help writing mail filters, visit https://gerrit.osmocom.org/settings Gerrit-Project: osmo-msc Gerrit-Branch: master Gerrit-Change-Id: Ie433db1ba0c46d4b97538a969233c155cefac21c Gerrit-Change-Number: 31740 Gerrit-PatchSet: 1 Gerrit-Owner: neels <nhofmeyr(a)sysmocom.de> Gerrit-MessageType: newchange

1 0

[M] Change in osmo-msc[master]: [codecs filter] use filter result in Assignment
by neels 07 Mar '23

07 Mar '23

Attention is currently required from: neels. Hello Jenkins Builder, I'd like you to reexamine a change. Please visit https://gerrit.osmocom.org/c/osmo-msc/+/30126 to look at the new patch set (#5). Change subject: [codecs filter] use filter result in Assignment ...................................................................... [codecs filter] use filter result in Assignment So far, patches have set up rtp_stream to allow setting multiple codecs, and collected the codecs information into the codecs filter struct. Now actually use the codecs filter result to choose a codec. Setting up the call leg FSMs and codecs still looks rather confusing in this patch, because this is an incremental step in a larger series. The upcoming patch 'do CN CRCX first' clarifies this substantially. The resulting codecs behavior is tested in upcoming patch I879ec61f523ad4ffc69a0b02810591f7c0261ff9. (The test ideally should have come before this patch, but my time to rework this branch is up.) With the codecs filter in place, we are ready for sending and receiving full SDP via MNCC, see upcoming Ie0668c0e079ec69da1532b52d00621efe114fc2c and Ie433db1ba0c46d4b97538a969233c155cefac21c Related: SYS#5066 Change-Id: I66e7c8c5e401f4f3a7d3d42b9525b2c6e99691d9 --- M src/libmsc/gsm_04_08_cc.c M tests/msc_vlr/msc_vlr_test_call.err 2 files changed, 46 insertions(+), 23 deletions(-) git pull ssh://gerrit.osmocom.org:29418/osmo-msc refs/changes/26/30126/5 -- To view, visit https://gerrit.osmocom.org/c/osmo-msc/+/30126 To unsubscribe, or for help writing mail filters, visit https://gerrit.osmocom.org/settings Gerrit-Project: osmo-msc Gerrit-Branch: master Gerrit-Change-Id: I66e7c8c5e401f4f3a7d3d42b9525b2c6e99691d9 Gerrit-Change-Number: 30126 Gerrit-PatchSet: 5 Gerrit-Owner: neels <nhofmeyr(a)sysmocom.de> Gerrit-Reviewer: Jenkins Builder Gerrit-CC: pespin <pespin(a)sysmocom.de> Gerrit-Attention: neels <nhofmeyr(a)sysmocom.de> Gerrit-MessageType: newpatchset

1 0

[L] Change in osmo-msc[master]: rtp_stream: allow multiple codecs / use codec filter from Assignment
by neels 07 Mar '23

07 Mar '23

Attention is currently required from: neels. Hello Jenkins Builder, laforge, pespin, I'd like you to reexamine a change. Please visit https://gerrit.osmocom.org/c/osmo-msc/+/30125 to look at the new patch set (#5). Change subject: rtp_stream: allow multiple codecs / use codec filter from Assignment ...................................................................... rtp_stream: allow multiple codecs / use codec filter from Assignment Allow configuring MGW conns with multiple codecs. The new codecs filter can have multiple results, and MGCP can configure multiple codecs. Get rid of this bottleneck, that so far limits to a single codec to MGW. On Assignment Complete, set codec_filter.assignment to the assigned codec, and use that to set the resulting codec (possibly multiple codecs in the future) to create the CN side MGW endpoint. Related: SYS#5066 Change-Id: If9c67b298b30f893ec661f84c9fc622ad01b5ee5 --- M include/osmocom/msc/call_leg.h M include/osmocom/msc/msc_ho.h M include/osmocom/msc/rtp_stream.h M src/libmsc/call_leg.c M src/libmsc/gsm_04_08_cc.c M src/libmsc/mncc_call.c M src/libmsc/msc_a.c M src/libmsc/msc_ho.c M src/libmsc/msc_t.c M src/libmsc/rtp_stream.c M tests/msc_vlr/msc_vlr_test_call.err M tests/msc_vlr/msc_vlr_tests.c 12 files changed, 205 insertions(+), 106 deletions(-) git pull ssh://gerrit.osmocom.org:29418/osmo-msc refs/changes/25/30125/5 -- To view, visit https://gerrit.osmocom.org/c/osmo-msc/+/30125 To unsubscribe, or for help writing mail filters, visit https://gerrit.osmocom.org/settings Gerrit-Project: osmo-msc Gerrit-Branch: master Gerrit-Change-Id: If9c67b298b30f893ec661f84c9fc622ad01b5ee5 Gerrit-Change-Number: 30125 Gerrit-PatchSet: 5 Gerrit-Owner: neels <nhofmeyr(a)sysmocom.de> Gerrit-Reviewer: Jenkins Builder Gerrit-Reviewer: laforge <laforge(a)osmocom.org> Gerrit-Reviewer: pespin <pespin(a)sysmocom.de> Gerrit-Attention: neels <nhofmeyr(a)sysmocom.de> Gerrit-MessageType: newpatchset

1 0
