Hi everybody,
I have a problem.
Yesterday I installed Fedora 20 (x86_64) laptop the following, bladeRF from nuand, and UHD
+ GnuRadio + gr-osmosdr + gr-iqbal etc... using Marcus Leech's build-gnuradio script.
"$ wget
http://www.sbrac.org/files/build-gnuradio && chmod a+x
./build-gnuradio && ./build-gnuradio"
I know have installed the following versions.
1) bladeRF:
libbladeRF 1.4.0
bladeRF-cli 1.2.0
FPGA: 0.3.0
Firmware: 1.8.0
GnuRadio 3.7.7
UHD 3.9.0
I am running the osmocom_fft utility on both the Ettus B210 and the bladeRF.
osmocom_fft -a bladerf=0 -s 1M -f 947M
osmocom_fft -a uhd -s 1M -f 947M
Both seem to be running fine except that the GUI does not look correct.

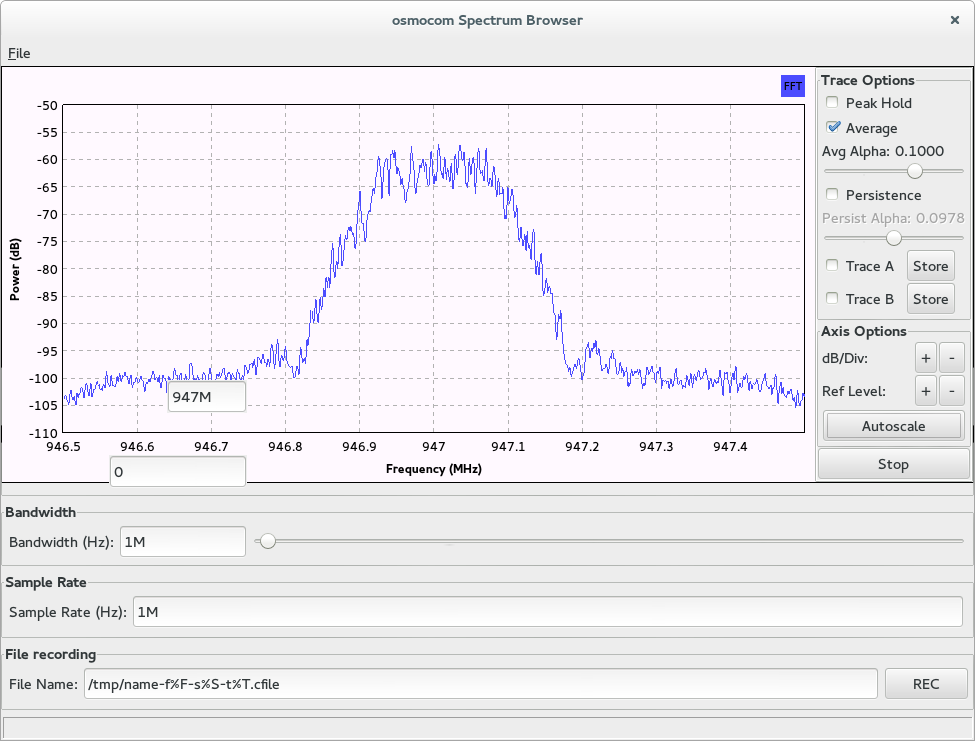

Please see attached images showing two screen shots of the osmocom_fft GUI.
Nuand bladeRF: Center Frequency and Gain Settings are messed up. Text and sliders missing,
and the boxes with the actual values are not in the right location.
Ettus B210: Center Frequency and RX Gain are messed up.Text and sliders missing, and the
boxes with the actual values are not in the right location.
Side note: uhd_fft runs without any problems (on the B210) and the GUI looks correct.
Nothing is missing or in a strange location on the screen.
What can be causing this? How can I fix it?
