Nick nick at nickvsnetworking.com
Sun Nov 1 09:11:41 UTC 2020


Hi all,

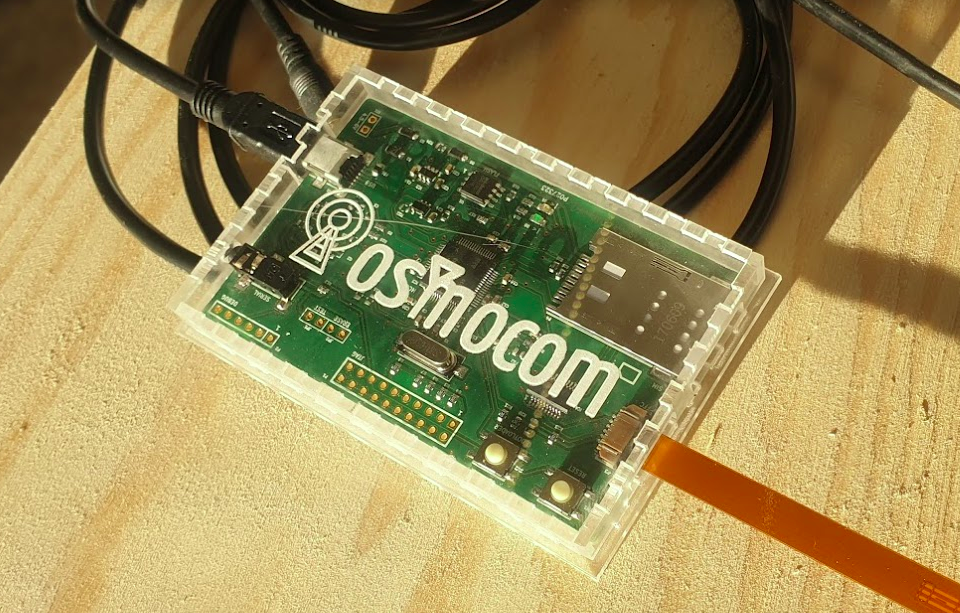

Had some free time this afternoon so I put together a laser cut case for
the SIMtrace (photos attached),
It's just cut out of 2mm perspex, with openings for the cards, flexible SIM
adapter, USB and 2.5mm jack.
They open up from the top for changing the flexible SIM adapters and
accessing the buttons / flashing,
The designs are attached for anyone who has got access to a makerspace or
laser cutter wants to make one,

   - *SimTrace_2mm_box_version_7.dxf *is the DXF for the design, should
   work with any cutting software, file is in MM
   - *Simtrace_Final.rld *is the RDworks layout with the logo in it (most
   low end lasers use this software) and it has the nesting & logo baked in
   (DXF does not have the logo embedded)
   - *Osmocom_Logo_No_Gradient.jpg* is an adjusted version of the Osmocom
   logo as the laser CAM software doesn't deal with gradients

I'm not sure where the best place to put the files are, so others can make
their own - on the SIMtrace page on the Wiki or in the Repo itself?
Cheers,
Nick

[image: image.png]
[image: SIMtrace.png]
