Dear Osmocom fans,


Fairwaves is proud to announce that Open Source Edition of UmSITE-TM3 — a
rugged 2x3W GSM base station, designed for rural and remote regions and
extreme climate conditions — is now available to order
<https://t.yesware.com/tl/f95bee9e3006b0a4fbb5d87c3f2c04fb2de74bfc/ca9f6714b102ce94076428e744dfe7ce/6e3dd097e5116865f5616bb5e87197b0?ytl=http%3A%2F%2Fshop.fairwaves.co%2Fready-to-use%3Fproduct_id%3D74>
.

UmSITE-TM3 is based on the same flexible architecture as UmDESK, built with
industrial-grade components and rugged packaging. Two independent TRX
channels, each with 3W TX power (6W total), make it ideal for outdoor
installations covering areas of up to 5 km.

Thanks to the modular open source software that comes pre-installed, this
base station can be used for all manner of experiments and test
installations. Built upon the UmTRX
<https://t.yesware.com/tl/f95bee9e3006b0a4fbb5d87c3f2c04fb2de74bfc/ca9f6714b102ce94076428e744dfe7ce/67e320e17e83ae13d5b41579a7d5f83e?ytl=http%3A%2F%2Fumtrx.org%2F>
SDR
transceiver, UmSITE-TM3 OSE is the perfect platform for Osmocom
<https://t.yesware.com/tl/f95bee9e3006b0a4fbb5d87c3f2c04fb2de74bfc/ca9f6714b102ce94076428e744dfe7ce/5089df9265e9132d45c91b7b19622d17?ytl=http%3A%2F%2Fopenbsc.osmocom.org%2Ftrac%2F>
 and OpenBTS
<https://t.yesware.com/tl/f95bee9e3006b0a4fbb5d87c3f2c04fb2de74bfc/ca9f6714b102ce94076428e744dfe7ce/39d848dd4178fae784bca751c2e86f45?ytl=http%3A%2F%2Fopenbts.org%2F>
GSM
applications.


*UmSITE-TM3 OSE Key features*

   - rugged
   <https://t.yesware.com/tl/f95bee9e3006b0a4fbb5d87c3f2c04fb2de74bfc/ca9f6714b102ce94076428e744dfe7ce/625f6b4c219ce866e7497ff1c88e365e?ytl=https%3A%2F%2Fwww.youtube.com%2Fwatch%3Fv%3DXorHvAkZ-X4>
IP65/IP67
   design that can operate in ambient temperatures of up to +55C with direct
   sunlight;
   - all-in-one solution which integrates dual-channel transceiver, single
   board computer (SBC), amplifiers, duplexers and all required RF components;
   - 6W total RF output power (3W per channel);
   - pre-installed Osmocom software stack that can be configured to operate
   in Network-in-The-Box (NITB) and pure BTS/BSC modes;
   - compatible with the OpenBTS software stack.


*Mobile World Congress demo*

If you're attending MWC in Barcelona this week, we invite you to come to see
UmSITE-TM3 as part of a live demo of a completely open-source mobile network
<https://t.yesware.com/tl/f95bee9e3006b0a4fbb5d87c3f2c04fb2de74bfc/ca9f6714b102ce94076428e744dfe7ce/8a5aa2b52ad8ee4d34dd6a0f2d87af00?ytl=https%3A%2F%2Ffairwaves.co%2Fwp%2Fmobile-world-congress-2015-demo%2F>
 at the Canonical/Ubuntu booth at Hall 8.1 at App Planet Stand CC8.20.

*FAQ*

*Is there a commercial version?*

We are currently developing a commercial version of the UmSITE-TM3, which
will be integrated with the Fairwaves core network, for use by companies
who would like to use them to operate commercial GSM networks. Stay tuned
for more details!

*Will it work with UMTS/LTE?*

While the UmTRX SDR transceiver hardware is perfectly capable of handling
UMTS and LTE waveforms, the SBC used by the UmSITE-TM3 has an Intel Atom
processor, which doesn't have quite enough processing power to handle UMTS
or LTE. So, unfortunately the answer is "no".

*We would like to take this opportunity to give our thanks to **Rhizomatica*
<https://t.yesware.com/tl/f95bee9e3006b0a4fbb5d87c3f2c04fb2de74bfc/ca9f6714b102ce94076428e744dfe7ce/a0bfd2e7f60bd26f5052aafe75ec5c2d?ytl=http%3A%2F%2Frhizomatica.org%2F>*
for
their early feedback, **BJT Partners*
<https://t.yesware.com/tl/f95bee9e3006b0a4fbb5d87c3f2c04fb2de74bfc/ca9f6714b102ce94076428e744dfe7ce/0ef66552b5fb427161db554ba6670648?ytl=http%3A%2F%2Fwww.bjtpartners.com%2F>*
for
their role in its development, Lime Microsystems
<https://t.yesware.com/tl/f95bee9e3006b0a4fbb5d87c3f2c04fb2de74bfc/ca9f6714b102ce94076428e744dfe7ce/f547887f09f7d1c515e91556fdde9841?ytl=http%3A%2F%2Fwww.limemicro.com%2F>
for open-source friendly SDR chips and to everyone else for their support!*

--
Regards,
Alexander Chemeris.
CEO, Fairwaves, Inc.
https://fairwaves.co
<https://t.yesware.com/tl/f95bee9e3006b0a4fbb5d87c3f2c04fb2de74bfc/ca9f6714b102ce94076428e744dfe7ce/a137ffb487d0bea4388b4321c7220db1?ytl=https%3A%2F%2Ffairwaves.co>

Subscribe to Fairwaves news: http://eepurl.com/baL_pf
<https://t.yesware.com/tl/f95bee9e3006b0a4fbb5d87c3f2c04fb2de74bfc/ca9f6714b102ce94076428e744dfe7ce/cec534fc73c10edde14266f709611f80?ytl=http%3A%2F%2Feepurl.com%2FbaL_pf>
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://lists.osmocom.org/pipermail/osmocom-commercial/attachments/20150228/979577f8/attachment.htm>
-------------- next part --------------
A non-text attachment was scrubbed...

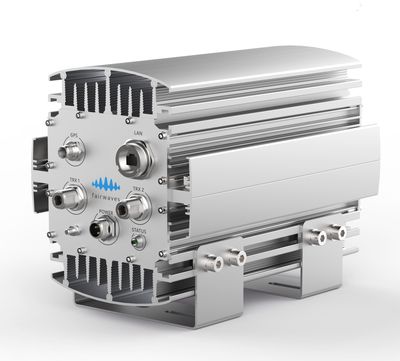

Name: UmSITE-TM3 white background small.jpg
